3-2-1159C | 1480 Series Circular Flange Yoke , Holes: 8 x 0.394 Bolt circle Diameter: 3.996 ,Pilot: 2.954F
$34.24
19 in stock
10
People watching this product now!
Description
3-2-1159C 1480 series circular flange yoke, 8-hole pattern. 3.996 in bolt circle, 0.394 in holes, 2.954 in female pilot, 2.625 in CJ-to-flat. Match bolt circle and pilot to companion flange.
Full Description

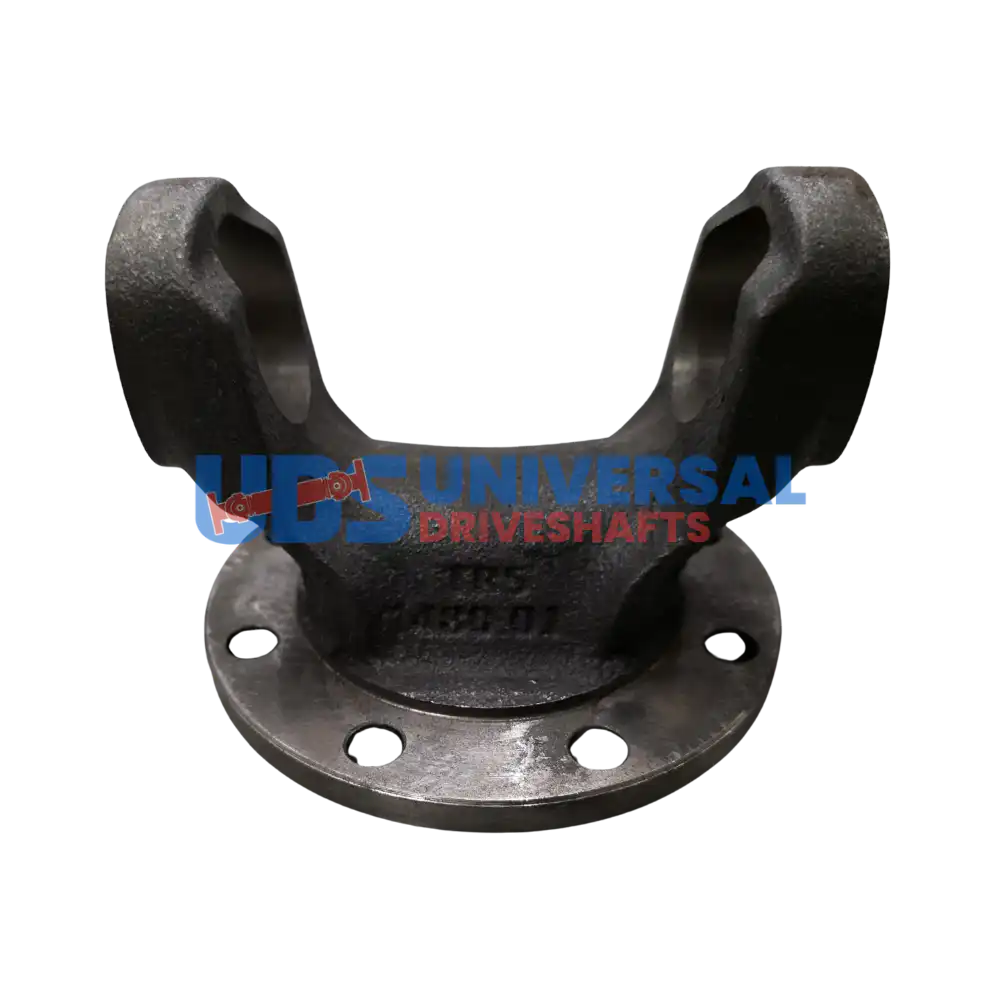

3-2-1159C 1480 Series Circular Flange Yoke
The 3-2-1159C is a 1480 series circular flange yoke with an 8-hole bolt pattern. The bolt circle diameter is 3.996 inches with 0.394-inch bolt holes, and the pilot diameter is 2.954 inches female. The centerline-to-flat dimension is 2.625 inches. Per the product notes, this flange corresponds to a 1410 series interface with a 120 mm OD, 75 mm pilot, and 8 bolt holes.
Specifications
- Part Number: 3-2-1159C
- Series: 1480
- Bolt Circle Diameter: 3.996 in
- Bolt Hole Diameter: 0.394 in
- Bolt Holes: 8
- Pilot Diameter: 2.954 in (female)
- Center U-Joint to Flat: 2.625 in
- Note: 1410 OD 120 — Pilot 75 mm — 8 holes
When fitting the 3-2-1159C, verify the companion flange bolt circle is 3.996 inches with 8 holes at 0.394-inch diameter. The 2.954-inch female pilot registers over the male pilot of the companion flange; confirm the male pilot diameter matches before installation. A female pilot flange that is undersized relative to the male will not seat correctly, causing misalignment and vibration.
The 3-2-1159C note references a 120 mm OD and 75 mm (approximately 2.953 inches) pilot, confirming this is a metric-dimensioned circular flange commonly found on European heavy-vehicle transfer cases and differentials. The 1480 series U-joint ears on this yoke must be matched with 1480 series U-joints. Match bolt circle diameter and pilot to your companion flange before ordering.
Additional information
| Bolt circle dia | 3.996 |
|---|---|
| Bolt hole dia | 0.394 |
| Cj to flat | 2.625 |
| Partn number | 3-2-1159C |
| Pilot dia | 2.954 |
| Series | 1480 |
| Bolt Holes | 8 |
| Notes | 1410 – OD 120 – PILOT 75MM – 8 HOLES |
