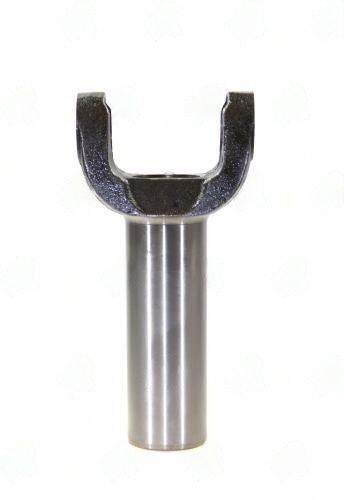

3503-312 Transmission Yoke 3-3-5431X 1350 series, Splines Diameter: 1.390 Splines Count: 31, Hub Diameter: 1.886
$42.77
+50 in stock
Description
3503-312 1350 series Ford 4R100 and BorgWarner 1345/1356/4406/4407 yoke, Spicer 3-3-5431X, 30/31-spline x 1.391″ diameter.
Full Description
- Part Number
- 3503-312
- Spicer Cross
- 3-3-5431X
- Series
- 1350
- Applications
- Ford 4R100, BW1345, BW1356, BW4406, BW4407
- Splines
- 30/31 x 1.391"
- C/U-joint to End
- 7.312"
- Hub Diameter
- 1.886"
Spicer cross-reference 3-3-5431X covers a broad range of Ford transmission and transfer case applications -- the 4R100 (found in 1998-2003 Super Duty trucks with 7.3L and 6.0L Power Stroke diesels) and several BorgWarner transfer case variants share this output specification. The 1.886" hub OD is the Ford heavy-duty output seal specification for these applications.
When servicing a Ford Super Duty 4WD with a 4R100 transmission and BW1356 transfer case, confirm which shaft (front or rear) requires the slip yoke and whether the slip is at the transmission or transfer case end -- both ends of the front shaft may have different yoke configurations. The 7.312" length is appropriate for most Super Duty applications, but measure the existing yoke before ordering to confirm the exact length needed.
Additional information
| Center u joint to end | 7.312 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | Ford 4R100, BW1345, BW1356, BW4406, BW4417, BW4418, BW4419, NP208 |
| Partn number | 3503-312 |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
