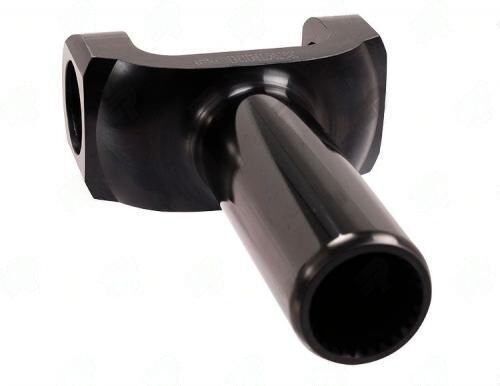

T3-3-5431HP – Transmission Yokes – 1350 Series – 30/31 X 1.391 Splines – 1.886″ Hub Dia
$213.26
Out of stock
Description
T3-3-5431HP forged chromoly black oxide 1350 series yoke, 30/31-spline x 1.391″ diameter, 7.312″ centerline to U-joint, 1.886″ hub.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | T3-3-5431HP |
| Series | 1350 |
| Material | Forged Chromoly, Black Oxide |
| Splines | 30/31 x 1.391" |
| C/U-joint to End | 7.312" |
| Hub Diameter | 1.886" |
| Counterbore | None |
- Forged chromoly provides the fatigue resistance needed for high-horsepower street and strip use -- compare with T3-3-5571HP (6.938", 31/32-spline) and T3-3-5551HP (7.940", 31/32-spline) for length alternatives
- 30/31-spline x 1.391" covers domestic truck and performance transmission outputs at this hub dimension
- C/U-joint to end 7.312" positions this yoke between the short (6.938") and standard (7.940") TH400 family members -- confirm your specific application length before ordering
- Hub 1.886" -- match to the transmission output seal bore; replacing the seal at each yoke removal is recommended
Black oxide finish is applied after final machining, so all critical dimensions are to specification. Chromoly yokes should not be welded or heated without subsequent stress relief -- avoid flame-heating the yoke during any removal procedure.
Additional information
| Center u joint to end | 7.312 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | Forged Chromoly / Black Oxidized |
| Partn number | T3-3-5431HP |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
