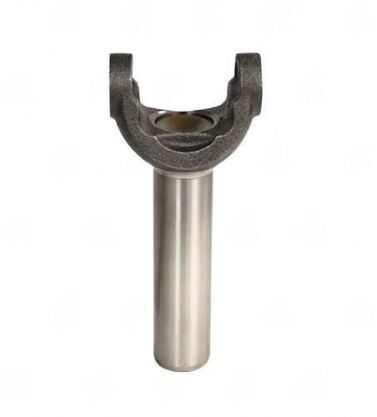

3503-311 – Transmission Yokes – 1350 Series – 30/31 X 1.391 Splines – 1.685″ Hub Dia
$95.30
1 in stock
Description
3503-311 1350 series full-spline transmission yoke, 30/31-spline x 1.391″ diameter, 8.440″ centerline to U-joint, 1.685″ hub.
Full Description
At 8.440" C/U-joint to end, 3503-311 is the longest full-spline 1350 yoke in the 30/31-spline x 1.685" hub family -- appropriate for full-size trucks and vans where maximum slip travel is required at the transmission end. Compare with 3503-315 (7.250"), 3503-314 (6.570"), and 3503-316 (6.000") at the same hub OD when selecting the correct length.
- Series: 1350 -- 1.188" U-joint cap diameter
- Full-spline engagement -- maximizes torque contact area for high-cycle or high-torque service
- Splines: 30/31 x 1.391" -- same profile across the full length range
- C/U-joint to end: 8.440" -- longest in this sub-family; confirm application before ordering
- Hub: 1.685" -- Chrysler, Ford C6, and some Jeep transmission output specification
On long-wheelbase trucks and vans, the longer yoke provides more safety margin -- the driveshaft can travel farther through its slip range before hitting the engagement limit. This prevents the shaft from bottoming out in the yoke at maximum suspension compression, which would transfer axle-movement loads directly into the transmission tail housing.
Additional information
| Center u joint to end | 8.440 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.685 |
| Notes | Full Spline |
| Partn number | 3503-311 |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
