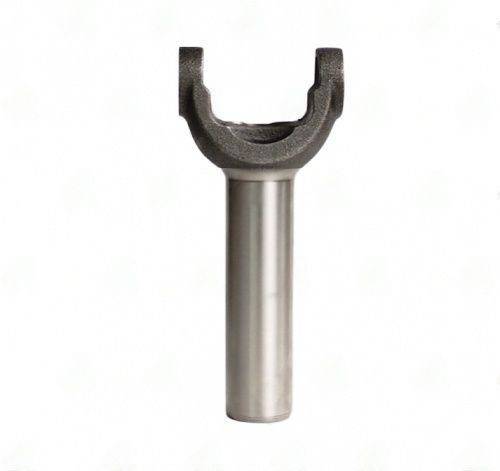

3503-310 – Transmission Yokes – 30/31 X 1.391 Splines – 1350 Series – 1.685″ Hub Dia
$94.16
1 in stock
Description
3503-310 1350 series Ford E4OD and 4R100 transmission yoke, 30/31-spline x 1.391″ diameter, 1.435″ counterbore, 8.250″ C/U-joint to end.
Full Description
Spec Summary: 3503-310 -- 1350 Series | Ford E4OD, 4R100 | 30/31-Spline x 1.391" | C/U-joint to End 8.250" | Counterbore 1.435" | Hub 1.685"
The Ford E4OD 4-speed overdrive automatic (1989-1997) and its successor 4R100 (1998-2003) are found in F-Series, E-Series, and Excursion vehicles with V8 and diesel powertrains. The 1.435" counterbore on 3503-310 pilots against the E4OD/4R100 output bearing retainer OD, providing centering that is required for smooth operation at highway cruise speed.
The 8.250" C/U-joint to end provides the slip travel needed for full-size Ford trucks and vans with long driveshafts. Compare 3503-310 (8.250") with 3503-313 (7.500", same counterbore) when selecting for shorter-wheelbase Ford applications. The 1.685" hub OD is the E4OD/4R100 output seal specification. When the driveshaft is removed for service, always replace the output seal before reinstallation -- E4OD and 4R100 output seals have a history of fluid leakage when the yoke is reinstalled without a new seal.
Additional information
| Center u joint to end | 8.250 |
|---|---|
| Counter bore dia | 1.435 |
| Hub dia | 1.685 |
| Notes | Ford E4OD, 4R100 |
| Partn number | 3503-310 |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
