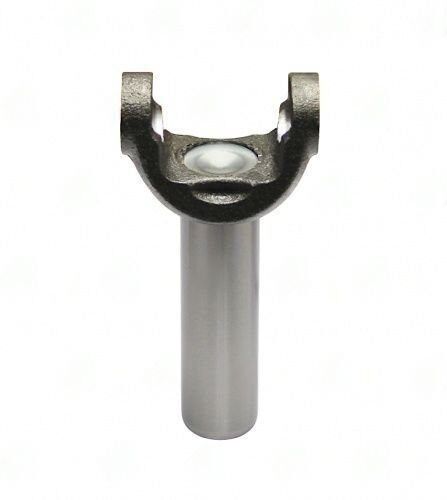

3503-313 – Transmission Yokes – 1350 Series – 30/31 X 1.391 Splines – 1.685″ Hub Dia
$91.70
1 in stock
Description
3503-313 1350 series Ford Mustang transmission yoke, 30/31-spline x 1.391″ diameter, 7.500″ C/U-joint to end, 1.435″ counterbore.
Full Description
3503-313 -- 1350 Series Ford Mustang Yoke, 30/31-Spline, 1.435" Counterbore
The 1.435" counterbore on 3503-313 is a Ford Mustang-specific feature -- it pilots against the output bearing retainer OD in the Ford AOD, AODE, and 4R70W transmissions used in 1979-2004 Mustangs with 1350 series driveshafts. Installing a no-counterbore yoke in a Mustang with this retainer feature will result in off-center running and a vibration that appears suddenly after a yoke replacement.
The 7.500" C/U-joint to end is appropriate for most standard-wheelbase Mustang applications. The 1.685" hub OD is the Ford transmission output seal specification. When upgrading a Fox-body, SN95, or New Edge Mustang driveshaft to 1350 series from 1310, this yoke must be paired with a 1350 weld yoke at the 8.8" differential end and a 1350 series U-joint. Compare with 3503-311 (full-spline, 8.440", no counterbore) for longer-travel applications.
Additional information
| Center u joint to end | 7.500 |
|---|---|
| Counter bore dia | 1.435 |
| Hub dia | 1.685 |
| Notes | Ford Mustang |
| Partn number | 3503-313 |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
