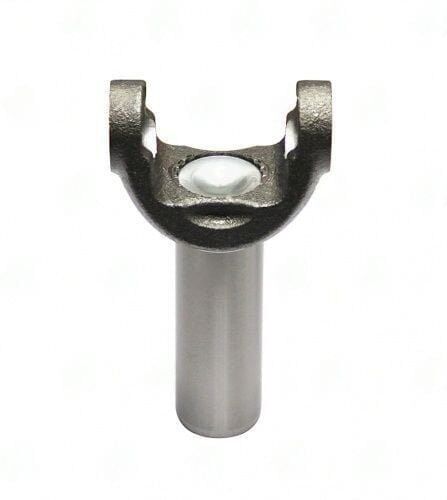

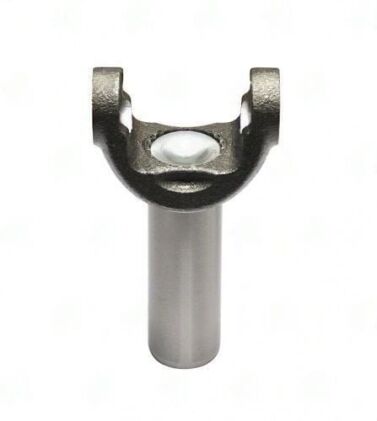

3503-314 – Transmission Yokes – 1350 Series – 30/31 X 1.391 Splines – 1.685″ Hub Dia
$90.06
1 in stock
Description
3503-314 1350 series Ford C6 full-spline transmission yoke, 30/31-spline x 1.391″ diameter, 6.570″ centerline to U-joint, 1.685″ hub.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3503-314 |
| Series | 1350 |
| Application | Ford C6, Full Spline |
| Splines | 30/31 x 1.391" |
| C/U-joint to End | 6.570" |
| Hub Diameter | 1.685" |
| Counterbore | None |
- The Ford C6 FMX and C6 heavy-duty automatic uses the 30/31-spline x 1.391" output -- the same spline profile as some GM and Chrysler applications, but the hub OD (1.685") is specific to the Ford C6 output seal
- Full-spline engagement maximizes torque contact area -- preferred for high-horsepower C6 builds using big-block Ford engines
- C/U-joint to end: 6.570" -- specific to the C6 driveshaft length requirement; compare with 3503-315 (7.250") and 3503-316 (6.000") at the same hub OD
- 1350 series: 1.188" U-joint cap -- upgrade from 1310 for V8 performance applications
The Ford C6 was used in Mustangs, Galaxies, F-Series trucks, and Broncos from the 1960s through the 1990s. Confirm the model year and engine size -- the heavy-duty C6 used in 360+ CID applications may have a different output spec from the light-duty C6 used with smaller engines.
Additional information
| Center u joint to end | 6.570 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.685 |
| Notes | C6 FULL SPLINE |
| Partn number | 3503-314 |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
