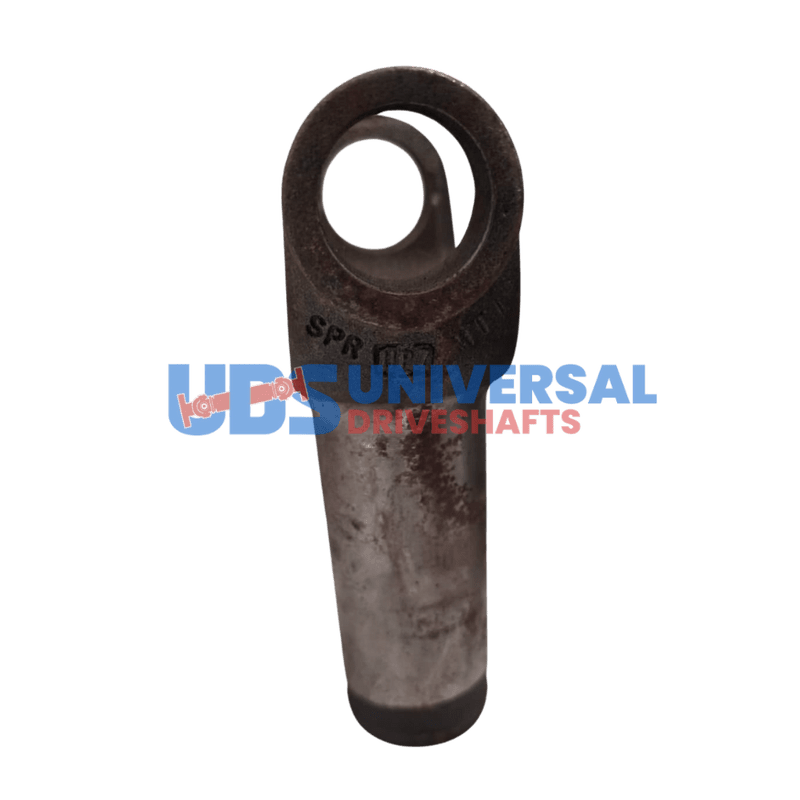

3-3-6061X Slip Yoke 1480 series, Splines: 1.562×23/24 , Centerline To End 6.810 Inch SPICER
$113.81
20 in stock
Description
3-3-6061X 1480 series slip yoke, 23/24-spline x 1.562″ diameter, 6.810″ centerline to U-joint end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3-3-6061X |
| Series | 1480 |
| Spline Count | 23/24 |
| Spline Diameter | 1.562" |
| C/U-joint to End | 6.810" |
- 23/24-spline profile allows this yoke to fit both 23-spline and 24-spline 1480-series outputs -- verify full tooth engagement before torquing the retaining hardware
- C/U-joint to end of 6.810" is nearly identical to the 16-spline version (3-3-1601KX at 6.812") -- both provide the same slip travel; the spline count is the selection criterion
- 1480 series U-joint cap: 1.375" diameter -- do not install a 1350 (1.188") cap into this yoke's ear bores even though the series letters look similar
- Apply EP grease to the spline bore before installation -- dry engagement causes immediate fretting and spline wear
- See also: slip yoke category for the full range of series options
When the driveshaft is removed for service, inspect the spline bore inside the yoke for wear ridges. A worn spline bore that has developed a step at the engagement limit will tear the spline tips off the mating shaft on reinstallation.
Not sure which slip yoke you need? Our transmission slip yoke guide covers spline counts, styles, and how to measure.
Additional information
| Center u joint to end | 6.810 |
|---|---|
| Partn number | 3-3-6061X |
| Series | 1480 |
| Splines count | 23/24 |
| Splines dia | 1.562 |
| Brand | SPICER |
