T3-3-6081H – Transmission Yokes – 1350 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia

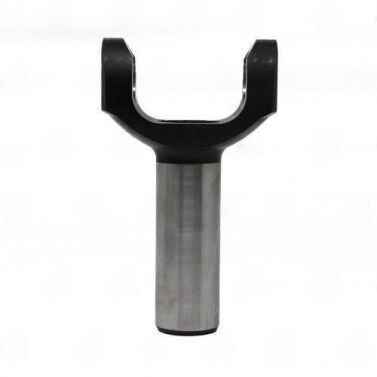

T3-3-6081H UDS 1350 Slip Yoke

The T3-3-6081H is a 1350 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.

The spline bore is 26/27-inch diameter with 1.176 splines. The stop shaft on the driveshaft tube must have an identical 26/27-inch diameter and 1.176-spline profile — a mismatch in either count or diameter means the yoke will not engage. The centerline-to-end dimension is 5.810 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. Fits Powerglide with roller bearing tail housing and is Forged from Chromoly and Black Oxidized.. The 1350 series ranks above 1330 in torque capacity, with a 1.188-inch cap diameter, suited for 3/4-ton and 1-ton trucks, common in Ford Super Duty, GM 2500/3500, and Ram 2500/3500 applications.

Specifications

• Part Number: T3-3-6081H
• Brand: UDS
• Series: 1350
• Center u joint to end: 5.810
• Counter bore dia: 0
• Hub dia: 1.500
• Notes: Fits Powerglide with roller bearing tail housing and is Forged from Chromoly and Black Oxidized.
• Splines count dia: 26/27 X 1.176

Fitment & Installation Notes

When selecting the T3-3-6081H, verify the stop shaft spline count and diameter match the 26/27 X 1.176 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
