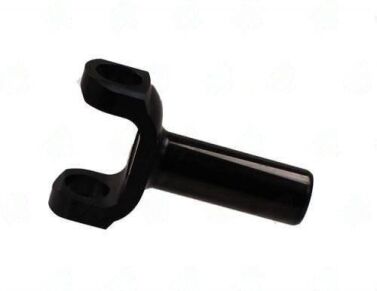

T3-3-14061HP – Transmission Yokes – 1350 Series – 27/28 X 1.220 Splines – 1.600″ Hub Dia
$302.46
1 in stock
Description
T3-3-14061HP forged steel black oxide 1350 series Ford C4 transmission yoke, 27/28-spline x 1.220″ diameter, 6.630″ C/U-joint to end.
Full Description
T3-3-14061HP -- Forged Steel 1350 Series Ford C4 Yoke, 27/28-Spline
The Ford C4 3-speed automatic uses a 27/28-spline x 1.220" output shaft -- a unique profile not shared with the Chrysler or GM transmissions in this product family. T3-3-14061HP is described as forged steel (not chromoly) with a black oxide finish, placing it in the heavy-duty street category rather than the chromoly race category. The forged steel construction still provides significantly better fatigue resistance than a cast yoke.
The 1.600" hub diameter matches the C4 output seal bore. The 6.630" C/U-joint to end provides adequate slip travel for most Mustang and Falcon applications where the C4 is the primary transmission choice. No counterbore -- hub and spline engagement provide centering. When building a 1350 series driveshaft for a C4-equipped vehicle, pair this yoke with a 1350 series weld yoke at the rear axle end and a 1350 series U-joint. Also see T3-3-8251HP for the 1.500" single-spline C4 variant.
Additional information
| Center u joint to end | 6.630 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.600 |
| Notes | C4 / Forged Steel / Black Oxidized |
| Partn number | T3-3-14061HP |
| Series | 1350 |
| Splines count dia | 27/28 X 1.220 |
