T2-3-14061HP – Transmission Yokes – 1330 Series – 27/28 X 1.220 Splines – 1.600″ Hub Dia
$212.71
1 in stock
Description

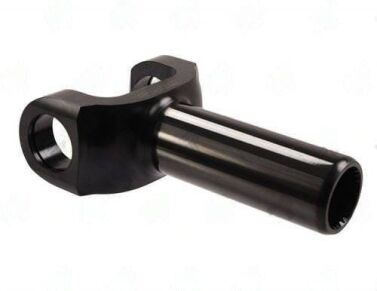

T2-3-14061HP forged chromoly black oxide 1330 series Ford C4 yoke, 27/28-spline x 1.220″ diameter, 6.630″ C/U-joint to end, 1.600″ hub.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | T2-3-14061HP |
| Series | 1330 |
| Application | Ford C4 |
| Material | Forged Steel Chromoly, Black Oxide |
| Splines | 27/28 x 1.220" |
| C/U-joint to End | 6.630" |
| Hub Diameter | 1.600" |
- The 1.600" hub OD on T2-3-14061HP versus 1.500" on T2-3-5981HP identifies these as different C4 transmission variants -- the larger hub corresponds to a larger output seal bore on specific C4 production years
- 6.630" C/U-joint to end versus 5.906" on T2-3-5981HP -- the longer yoke accommodates a longer driveshaft application
- Forged chromoly: appropriate for high-horsepower Mustang and Falcon builds using the C4
- 1330 series: 1.062" cap diameter -- verify the driveshaft tube yoke is also 1330 series before mixing with a 1350 shaft assembly
The Ford C4 was used in Mustangs, Cougars, Falcons, and F-Series trucks from 1964-1981. The output spec changed across production years -- always confirm the hub OD (1.500" or 1.600") against the C4 serial number or tail housing bore measurement before ordering.
Alternative parts:
Additional information
| Center u joint to end | 6.630 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.600 |
| Notes | C4 / Forged Steel / Black Oxidized / CHROMOLY |
| Partn number | T2-3-14061HP |
| Series | 1330 |
| Splines count dia | 27/28 X 1.220 |
