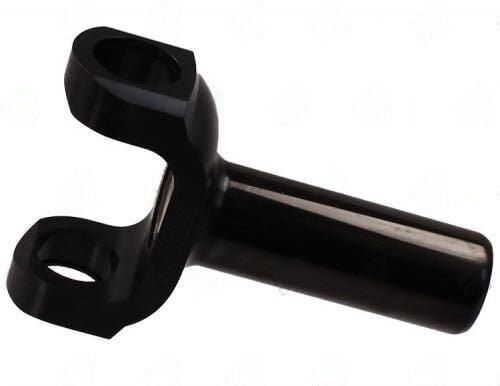

T2-3-12081HP – Transmission Yokes – 1330 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia
$206.59
1 in stock
Description
T2-3-12081HP forged chromoly black oxide 1330 series TH350 transmission yoke, 26/27-spline x 1.156″ diameter, 5.470″ C/U-joint to end.
Full Description
T2-3-12081HP -- Forged Chromoly 1330 Series TH350 Yoke, 26/27-Spline
The T2-3-12081HP is the 1330 series chromoly upgrade from the standard 1330 TH350 yoke. For TH350 applications where the 1310 series has proven inadequate but the full 1350 series is not required, the 1330 series provides intermediate strength at lower cost. The trunnion width of the 1330 series allows slightly greater articulation angle than the 1310 series at the same 1.062" cap diameter.
The 26/27-spline x 1.156" profile is standard TH350 output -- the same as all other TH350 yokes in this family (3-3-6081X, T3-3-6081HP, T3-3-6081H). The 5.470" C/U-joint to end is the standard TH350 short length. Compare with T2-3-12051HP (6.750", TH700 application) for the longer-length 1330 series variant at a different spline specification. The forged chromoly construction and black oxide finish are consistent with the performance T-series yoke family.
Additional information
| Center u joint to end | 5.470 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | TH350 / Forged Steel / Black Oxidized / CHROMOLY |
| Partn number | T2-3-12081HP |
| Series | 1330 |
| Splines count dia | 26/27 X 1.176 |
