Slip Yoke Series: 2351-21, Splines: 1.5×16, CJ to END: 8″ SY1351-21 – UDS
$70.86
29 in stock
Description
Part SY1351-21U is a 2351-21 series slip yoke from Universal Driveshafts, engineered to OEM tolerances for reliable drivetrain performance. In stock and available for fast shipping.
Full Description

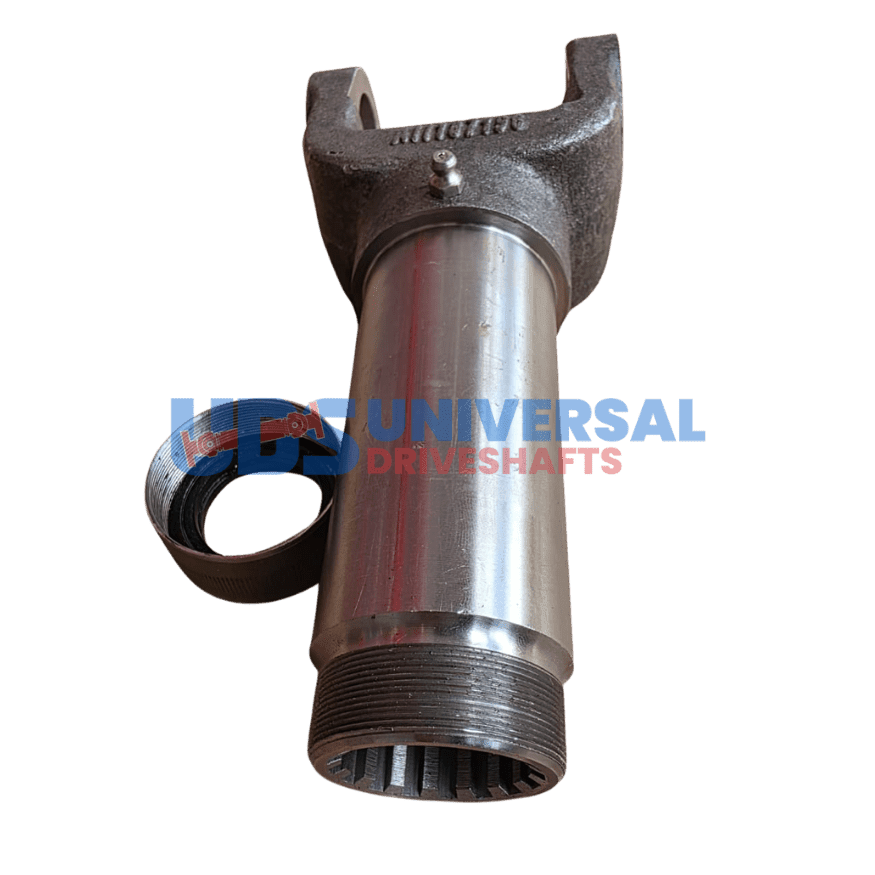

Replacement Slip Yoke SY1351-21U -- Precision-Matched for 2351-21 Series Builds
Slip yokes accommodate driveshaft length changes as the suspension cycles. The SY1351-21U is a 2351-21 series slip yoke with a 1.500-inch spline and 16 splines, engineered for smooth axial movement under load without binding or excessive backlash. Whether this is a straightforward OEM replacement or a component in a custom driveshaft assembly, the SY1351-21U provides a dimensionally verified starting point rather than a catalog guess.
Specification Detail
| Specification | Value |
|---|---|
| Series | 2351-21 |
| Splines Count | 16 |
| Splines Dia | 1.500 |
| Material | Steel |
| Brand | UDS |
| Part Number | SY1351-21U |
Sourcing a Slip Yoke: What to Cross-Reference
When replacing a slip yoke, the safest approach is to cross-reference the part number stamped on the original. If that number has been superseded or the original part is missing, the critical dimensions are 16 splines at 1.500-inch diameter. Match these to the values in the specification table above. All other details -- material grade, surface finish, cap bore size -- are built into the 2351-21 series designation and will be correct if the key dimensions match.
Assembly Reminders
- Never use a hammer directly on the yoke body -- use a brass drift or press for cap installation
- Snap ring grooves must be clean and undamaged for the circlip to seat at full depth
- Confirm 2351-21 series cap OD before pressing -- an undersized cap will not carry load correctly
- Check transmission output shaft seal condition -- a failing seal will contaminate the new yoke quickly
- Verify 16 splines at 1.500-inch diameter with calipers after assembly, before road test
Note: Use Part Number SA2351-21 For A Slip assembly Set Option
Universal Driveshafts stocks the SY1351-21U for immediate shipment. Packaging protects finished surfaces during transit.
Additional information
| Series | 2351-21 |
|---|---|
| Splines count | 16 |
| Splines dia | 1.500 |
| Notes | Use Part Number SA2351-21 For A Slip assembly Set Option |
| Brand | UDS |
| Center u joint to end | 8.000 |
