Brand:
Slip Assembly 32×61 2351-21 Series Inside Snap Ring Toyota Land Cruiser Long Travel, Splines 1.5×16 available for 2×0.120 To 3×0.095
$179.79
20 in stock
13
People watching this product now!
Description
SA2351-21U UDS 2351-21 series long-travel slip assembly for Toyota Land Cruiser. 1.500″ x 16 spline, 11″ collapsed CJ-to-weld, inside snap ring. Fits 2×0.120 to 3×0.095 tube.
Full Description

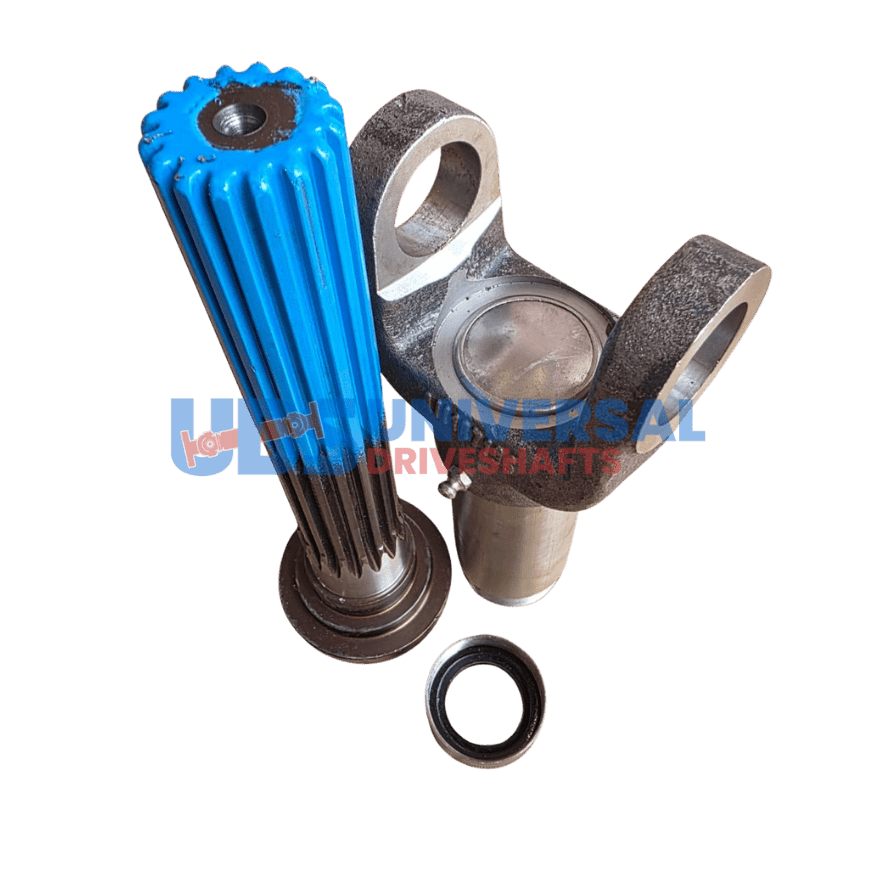

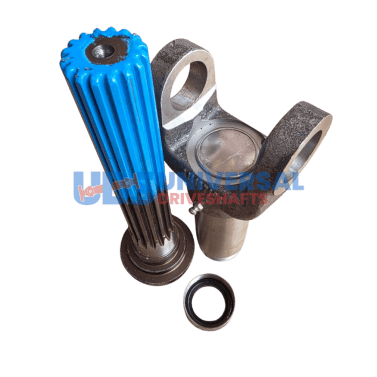

SA2351-21U UDS 2351-21 Series Slip Assembly — Toyota Land Cruiser Long Travel
The SA2351-21U is a 2351-21 series slip assembly manufactured by UDS, configured for long-travel driveshaft applications including the Toyota Land Cruiser. It uses a 32 x 61mm U-joint series and features a 16-spline bore with a 1.500-inch spline diameter. The butt diameter is 2.844 inches and the collapsed CJ-to-weld dimension is 11 inches. The assembly is available for tube sizes from 2 x 0.120 up to 3 x 0.095. Material is steel with an inside snap ring retention design.
Specifications
- Part Number: SA2351-21U
- Brand: UDS
- Series: 2351-21
- U-Joint Size: 32 x 61mm
- Spline Count: 16
- Spline Diameter: 1.500"
- Butt Diameter: 2.844"
- CJ to Weld Collapsed: 11"
- Fits Tube: 2 x 0.120 to 3 x 0.095
- Material: Steel
When fitting the SA2351-21U, confirm the driveshaft tube OD and wall fall within the stated range (2 x 0.120 to 3 x 0.095) and that the output shaft splines are 16 count at 1.500 inches diameter. The inside snap ring retention locks the slip yoke to the stub shaft — verify the stub shaft has the corresponding snap ring groove. The 11-inch collapsed CJ-to-weld length defines maximum compression; ensure adequate travel margin for the suspension's full compression stroke.
The SA2351-21U is designed specifically for long-travel suspension applications where conventional slip yokes lack the engagement depth needed to maintain driveshaft integrity throughout the suspension range. For a slip-yoke-only option (without the full assembly), reference part number SY1351-21U.
Additional information
| Series | 2351-21 |
|---|---|
| Material | STEEL |
| Splines count | 16 |
| Splines dia | 1.500 |
| Fits to tube | 3×083 more |
| Butt dia | 2.844 |
| Brand | UDS |
| Notes | SLIP Yoke with a u joint 32X61 series 2351-21 available for tube 3×095 CJ to Weld Collapsed: 11 Inch Heavy Duty Long Travel Set |
