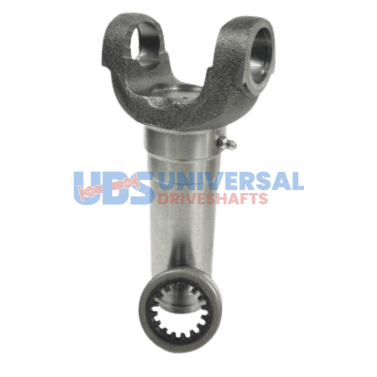

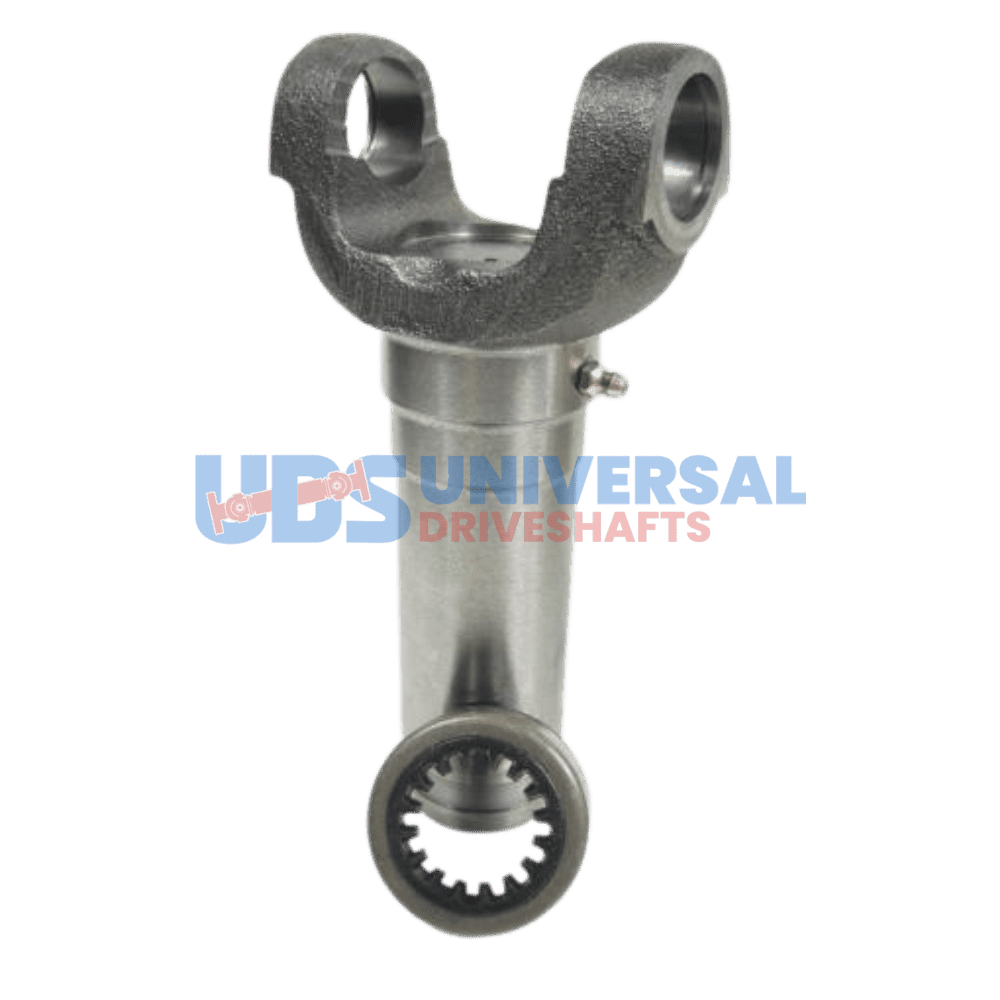

Slip Yoke 1350 Series , Splines: 1.5×16 , Center Line To End: 7.312 N3-3-1502KX – UDS
$48.07
20 in stock
17
People watching this product now!
Description
1350 series N3-3-1502KXU slip yoke. 1.500 x 16 spline | 7.312″ CL-to-end. Slides onto transmission output shaft — spline-specific fitment.
Full Description
A worn slip yoke doesn't fail cleanly -- it wears gradually, introducing play that the rest of the drivetrain has to absorb. The N3-3-1502KXU replaces it before that play becomes damage.
N3-3-1502KXU Slip Yoke -- 1350 Series Spline Specs
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds.
Specs on the N3-3-1502KXU slip yoke: 1.500 x 16 spline | 7.312" CL-to-end. Verify spline count and diameter. If your transmission was swapped or rebuilt with an aftermarket tail housing, the output spline count may differ from factory.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Spline: 1.500 x 16 -- must match transmission output shaft exactly
- CL-to-end: 7.312" -- determines driveshaft travel range, critical on lifted vehicles
Specifications
- SKU: N3-3-1502KXU
- Brand: UDS
- Series: 1350
- Spline Dia: 1.500
- Spline Count: 16
- CL to End: 7.312"
Additional information
| Series |
1350 |
|---|---|
| Splines count |
16 |
| Splines dia |
1.500 |
| Center u joint to end |
7.312 |
| Class |
LD |
| Brand |
UDS |
