2-28-295 Weld Tube Yoke 1310 Ser’ , Fits 2.500 x 0.095 Butt Dia: 2.321 , Centerline To Weld: 2 inch

2-28-2595 UDS 1310 Series Weld Tube Yoke

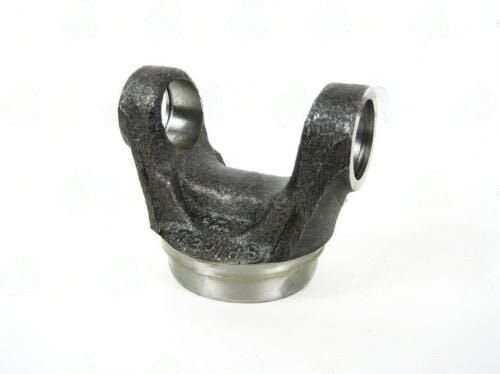

The 2-28-2595 is a 1310 series weld tube yoke manufactured by UDS, machined from steel. It fits a driveshaft tube OD of 2.500 inches with a wall thickness of 0.095 inches. The butt diameter is listed in the product name as 2.321 inches. The centerline of the U-joint to the weld end per attribute data is 1.688 inches.

Specifications

• Part Number: 2-28-2595
• Brand: UDS
• Series: 1310
• Tube OD x Wall: 2.500" x 0.095"
• Center U-Joint to Weld: 1.688"
• Material: Steel

When fitting the 2-28-2595, confirm the tube OD is 2.500 inches and the wall is 0.095 inches before welding. The butt diameter is sized to match the 2.500 x 0.095 tube spec. The 1.688-inch CL-to-weld measurement results in a compact yoke geometry, suitable for driveshaft configurations with limited end-to-tube length. The 2-28-2595 uses the 1310 series U-joint interface, which is the most common mid-range SAE series in North American light- and medium-duty driveshafts. Verify the mating U-joint is 1310 series before completing the assembly.
