3026-20S Weld Tube Yoke 1300 Ser’ , Fits 2.000 X 0.095 Solid Butt , Butt Dia: 1.821 Inch SOLID BUTT Centerline To Weld: 1.7 Inch
$41.25
1 in stock
Description

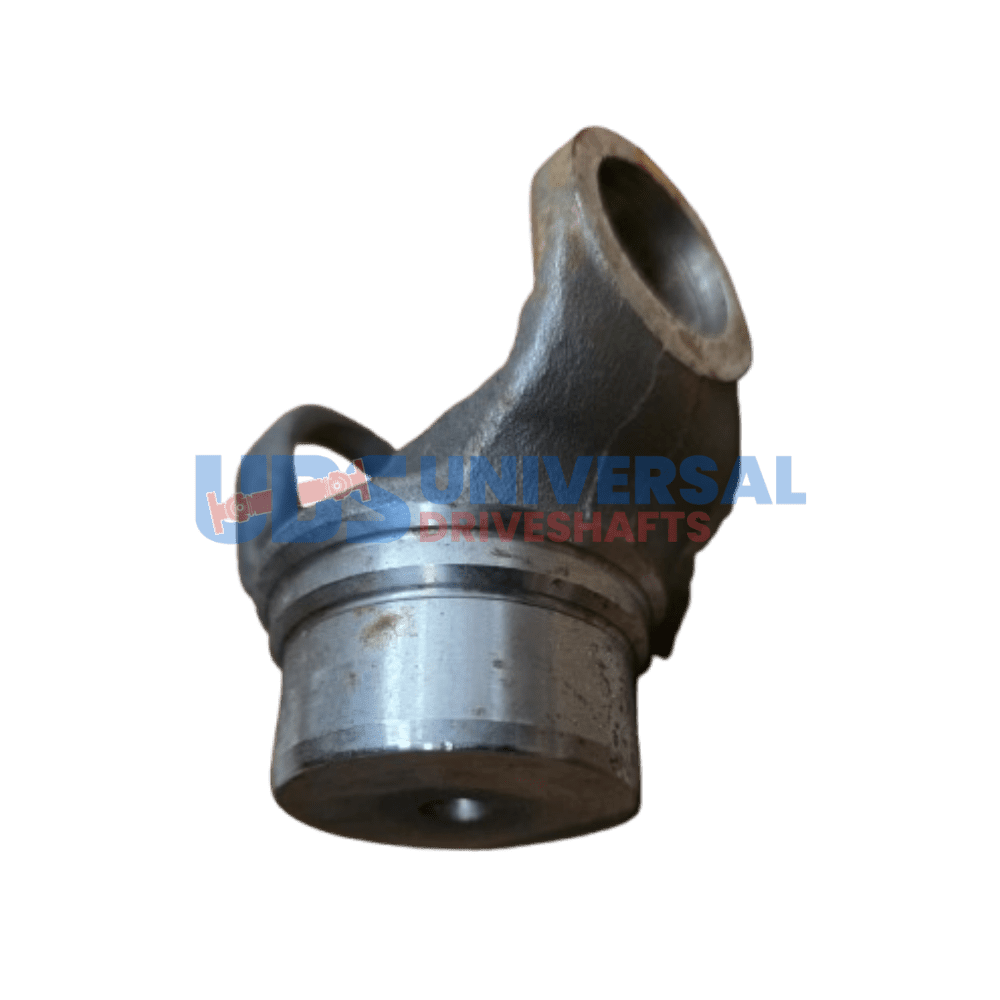

The 3026-20SU is a 1300 series weld tube yoke for 2.000in OD driveshaft tube with a 1.813″ butt diameter. Steel construction, ready for custom driveshaft fabrication at Universal Driveshafts.
Full Description
Replacement Weld Tube Yoke 3026-20SU -- Precision-Matched for 1300 Series Builds
Weld tube yokes are the u-joint-end connection for custom driveshaft tubes. The 3026-20SU is a 1300 series weld yoke for 2.000-inch OD tube with 0.095-inch wall, with a butt diameter of 1.813 inch and a CJ-to-weld distance of 1.688 inch. Whether this is a straightforward OEM replacement or a component in a custom driveshaft assembly, the 3026-20SU provides a dimensionally verified starting point rather than a catalog guess.
Specification Detail
| Specification | Value |
|---|---|
| Series | 1300 |
| Tube OD x Wall | 2.000X0.095 |
| Butt Dia | 1.813 |
| CJ to Weld | 1.688 |
| Material | STEEL |
| Brand | UDS |
| Part Number | 3026-20SU |
Sourcing a Weld Tube Yoke: What to Cross-Reference
When replacing a weld tube yoke, the safest approach is to cross-reference the part number stamped on the original. If that number has been superseded or the original part is missing, the critical dimensions are tube OD 2.000 x wall 0.095, butt dia 1.813. Match these to the values in the specification table above. All other details -- material grade, surface finish, cap bore size -- are built into the 1300 series designation and will be correct if the key dimensions match.
Assembly Reminders
- Never use a hammer directly on the yoke body -- use a brass drift or press for cap installation
- Snap ring grooves must be clean and undamaged for the circlip to seat at full depth
- Confirm 1300 series cap OD before pressing -- an undersized cap will not carry load correctly
- Check transmission output shaft seal condition -- a failing seal will contaminate the new yoke quickly
- Verify tube OD 2.000 x wall 0.095, butt dia 1.813 with calipers after assembly, before road test
Universal Driveshafts stocks the 3026-20SU for immediate shipment. Packaging protects finished surfaces during transit.
Additional information
| Butt dia | 1.813 |
|---|---|
| Center u j to weld | 1.688 |
| Material | STEEL |
| Partn number | 3026-20 |
| Series | 1300 |
| Tube dia wall | 2.000X0.095 |
| Brand | UDS |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weld Yokes (191) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 3.810" Center u j to weld 2.969 Material STEEL Partn number 100-28-17 Series SPL90/100 Tube dia wall 4.000X0.095 Brand SPICER | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.321 Center u j to weld 1.688 Material STEEL Partn number 110679 Series 1310 Tube dia wall 2.500X0.095 Brand UDS Notes Butt Diameter 58.95 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.571 Center u j to weld 1.625 Material STEEL Notes INFINITI FRONT SHAFT Partn number 1126-1711 Series 9951-22 Tube dia wall 1.750X0.095 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.667 Center u j to weld 1.750" Material STEEL Partn number 1226-17 Series 1251 Tube dia wall 1.775X.0.65 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.844 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-20 Series 1251 Tube dia wall 2.000X0.083 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.875 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-201 Series 1251 Tube dia wall 2.000x0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.140" Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-22 Series 1251 Tube dia wall 2.370X0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-25 Series 1251 Tube dia wall 2.500X0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 Center u j to weld 1.375 Material STEEL Notes FOREIGN - HONDA Partn number 1226-251 Series 1251-22 Tube dia wall 2.500X0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.400" Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-26 Series 1251 Tube dia wall 2.550X0.080 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
