3-28-57-1 Weld Tube Yoke 1350 Ser’ , Fits: 2.750 x 0.083 , Butt Dia: 2.594 Inch CL To Weld: 2 Inch SOLID BUTT

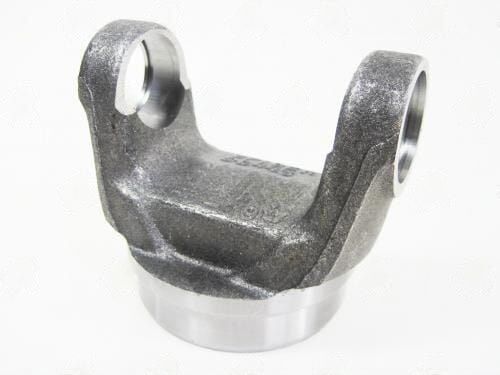

3-28-57-1 UDS 1350 Series Weld Tube Yoke — Solid Butt

The 3-28-57-1 is a 1350 series weld tube yoke manufactured by UDS with a solid butt design, machined from steel. It fits a tube OD of 2.750 inches with a wall thickness of 0.083 inches. The butt diameter is 2.594 inches and the centerline of the U-joint to the weld end measures 2.000 inches. Per the notes, the solid butt can be turned down to accommodate a 2.000 x 0.125 tube specification.

Specifications

• Part Number: 3-28-57-1
• Brand: UDS
• Series: 1350
• Tube OD x Wall: 2.750" x 0.083"
• Butt Diameter: 2.594"
• Center U-Joint to Weld: 2.000"
• Material: Steel
• Notes: Solid butt — can be turned down to 2.000" x 0.125"

When fitting the 3-28-57-1, confirm the tube OD is 2.750 inches and the wall is 0.083 inches before welding. The solid butt configuration provides full cross-section material at the weld interface. If the application requires a 2.000 x 0.125 tube, the solid butt can be machined down to that spec — this flexibility makes the 3-28-57-1 useful for custom driveshaft builds where tube dimensions may vary. The 1350 series is positioned above 1330 in SAE capacity and is commonly used in heavy half-ton and light three-quarter-ton truck rear driveshafts. Verify the mating U-joint cap dimensions match 1350 series before completing the assembly with the 3-28-57-1.
