Brand:

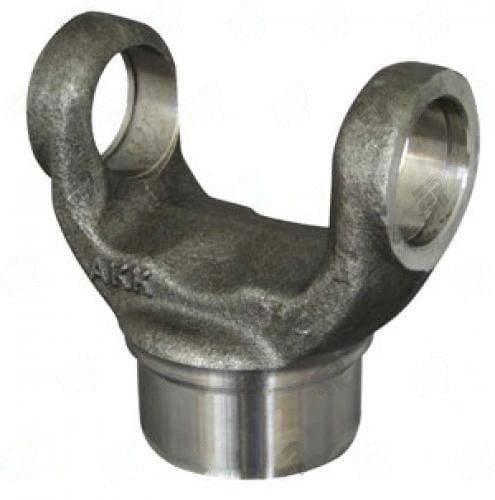

3026-20 Weld Tube Yoke 1300 Ser’ , Fits: 2.000 x 0.095 Butt Dia: 1.821 Centerline To Weld: 1.688 Inch
$41.25
1 in stock
Description
3026-20 weld yoke, 1300 series, 1.813″ butt diameter, compatible with 2.000X0.095″ OD tube — steel construction for driveshaft assembly.
Full Description
Shop Notes: 3026-20 -- 1300 Weld Yoke, 1.813" Butt
If you are on the floor building a custom driveshaft and need a 1300 series weld yoke to accept 2.000" OD x 0.095" wall tube, the 3026-20 is your part. Butt diameter is 1.813", center u-joint to weld face is 1.688". Material is steel. It ships machined and ready to weld -- no cleanup bore required.
Spec Sheet
| Field | Spec |
|---|---|
| Part No. | 3026-20 |
| UJ Series | 1300 |
| Butt Dia. | 1.813" |
| Tube (OD x Wall) | 2.000X0.095" |
| Ctr-UJ to Weld | 1.688" |
| Material | STEEL |
| Brand | UDS |
Tube Compatibility Check
The bore is machined for 2.000" OD tube at 0.095" wall. Using a different tube OD -- even 0.020" off -- will cause a loose fit that traps weld gas and weakens the joint. If your tubing is metric or slightly non-standard, measure with calipers before ordering.
Series Interface
The 1300 series u-joint pockets match standard 1.062" cap-diameter crosses used in light truck and performance car drivetrain applications. Using a different series yoke at the other end of the shaft is fine as long as the mating u-joint is also a cross-series design -- but keep both ends consistent when possible for balanced angularity.
Welding & Balancing
Heat-treated steel construction delivers the torsional rigidity required for heavy-duty propshaft applications, resisting deflection under load. After welding, spin-balance the shaft assembly to at least 0.25 oz-in residual imbalance per balancing plane -- less for high-RPM or highway applications.
Additional information
| Butt dia | 1.813 |
|---|---|
| Center u j to weld | 1.688 |
| Material | STEEL |
| Partn number | 3026-20 |
| Series | 1300 |
| Tube dia wall | 2.000X0.095 |
| Brand | UDS |
