Brand:
3-3-1701KX Slip Yoke 1410 series, Splines: 1.562×16 , Center Line To End 6.8 – UDS
$50.74
20 in stock
13
People watching this product now!
Description
3-3-1701KXU UDS 1410 series slip yoke. 1.562″ x 16 spline, 6.812″ CJ-to-end, LD class. Match stop shaft spline count and diameter before ordering.
Full Description

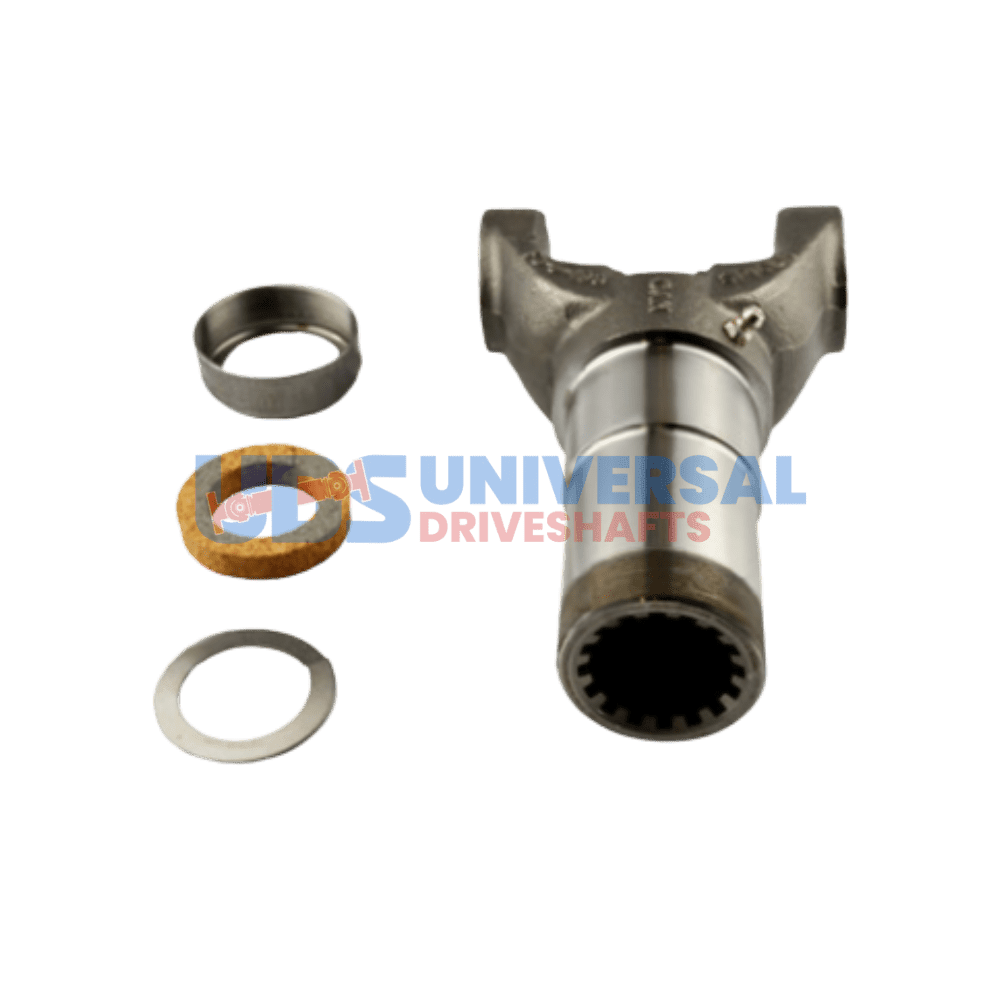

3-3-1701KXU UDS 1410 Series Slip Yoke
The 3-3-1701KXU is a 1410 series slip yoke manufactured by UDS. It features a 16-spline bore with a spline diameter of 1.562 inches, and the centerline of the U-joint to the end measures 6.812 inches. Class is LD. The slip yoke plug reference is 3-68-163 and the lube fitting is 500174-1.
Specifications
- Part Number: 3-3-1701KXU
- Brand: UDS
- Series: 1410
- Spline Count: 16
- Spline Diameter: 1.562"
- CJ to End: 6.812"
- Class: LD
- Slip Yoke Plug: 3-68-163
- Lube Fitting: 500174-1
When fitting the 3-3-1701KXU, verify the stop shaft on the front driveshaft section has 16 splines at a 1.562-inch diameter — any mismatch in count or diameter will prevent proper sliding engagement. The 6.812-inch CL-to-end dimension determines effective engagement depth at full compression; confirm this is compatible with the shaft working travel before installation.
The 1410 series provides higher torque capacity than the 1350, making the 3-3-1701KXU appropriate for heavy half-ton and three-quarter-ton truck drivelines. The lube fitting (500174-1) allows field lubrication of the slip splines. Use plug 3-68-163 to cap the end of the yoke bore when the assembly requires a sealed configuration.
Additional information
| Series | 1410 |
|---|---|
| Splines count | 16 |
| Splines dia | 1.562 |
| Center u joint to end | 6.812 |
| Class | LD |
| Brand | UDS |
| Notes | Slip yoke plug 3-68-163, Lube fitting 500174-1 |
