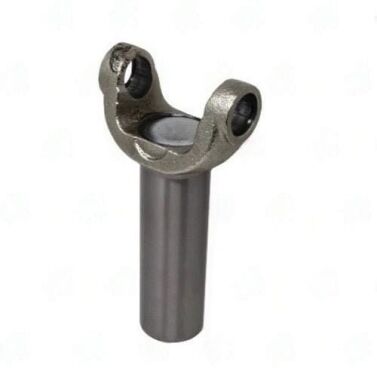

4103-342 – Transmission Yokes – 1410 Series – 33/34 X 1.551 Splines – 2.086″ Hub Dia
$78.06
1 in stock
Description
4103-342 1410 series nickel-plated transmission yoke, 33/34-spline x 1.625″ diameter, 8.110″ centerline to U-joint, no counterbore.
Full Description
Spec Summary: 4103-342 -- 1410 Series | Nickel Plated | 33/34-Spline x 1.625" | C/U-joint to End 8.110" | Hub 2.086" | No Counterbore
The no-counterbore version of this yoke (4103-342) is used on transmissions where the output bearing retainer does not extend into the yoke bore -- the hub OD provides the sole centering interface with the output seal. If the original yoke on your transmission had a counterbore feature, order 4103-343 instead to preserve the centering pilot.
The 1410 series nickel-plated yoke family (4103-342 and 4103-343) is commonly used on Ford, GM, and Chrysler medium-duty applications. The nickel finish helps resist external corrosion but does not affect the internal spline or hub dimensions. When installing, ensure the output shaft retaining hardware is torqued to specification -- under-torque allows the yoke to work on the spline, creating micromotion that generates fretting debris and eventually loosens the connection. Replace the output seal at each yoke removal to prevent fluid leak after reassembly.
Additional information
| Center u joint to end | 8.110 |
|---|---|
| Counter bore dia | |
| Hub dia | 2.086 |
| Notes | Nickel Plated |
| Partn number | 4103-342 |
| Series | 1410 |
| Splines count dia | 33/34 X 1.551 |
