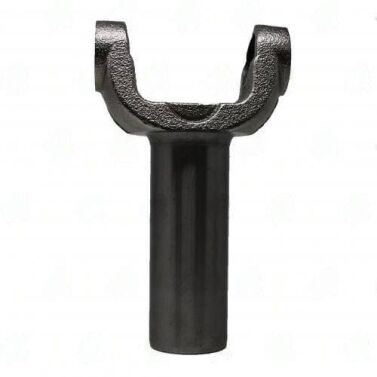

4103-327 – Transmission Yokes – 1410 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$80.00
1 in stock
Description
4103-327 1410 series transmission yoke for GM and Ford 32-spline transfer case, 31/32-spline x 1.378″ diameter, 6.938″ C/U-joint to end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 4103-327 |
| Series | 1410 |
| Application | GM, Ford 32-spline transfer case |
| Splines | 31/32 x 1.378" |
| C/U-joint to End | 6.938" |
| Hub Diameter | 1.886" |
| Counterbore | None |
- Noted for GM and Ford 32-spline transfer case outputs -- the 31/32-spline count provides cross-fitment across both vehicle families that use this output shaft profile
- Hub 1.886" is a different size from the 2.086" or 2.201" hubs found on other 1410 yokes -- confirm your transfer case seal bore diameter before ordering
- The shorter 6.938" C/U-joint to end is appropriate for transfer case-mounted slip yokes where less slip travel is needed than at the transmission end
- 1410 series: 1.188" cap diameter U-joint required at both ends of the shaft
Transfer case yokes must be checked for proper engagement at the full suspension droop position as well as full compression -- a yoke that is barely engaged at droop will pull out under load. Measure slip travel in both positions before specifying the shaft length.
Additional information
| Center u joint to end | 6.938 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | GM, Ford 32 spline transfercase |
| Partn number | 4103-327 |
| Series | 1410 |
| Splines count dia | 31/32 X 1.378 |
