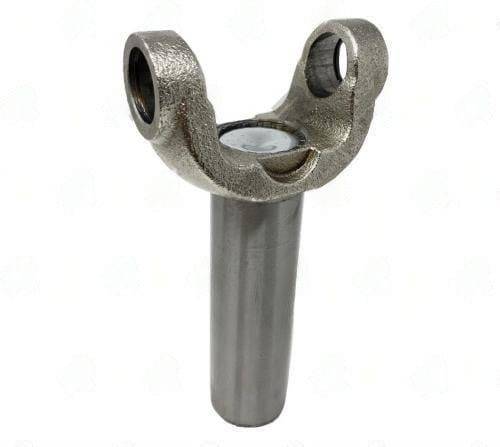

4103-322 Transmission Yoke Chevy 1410 Series 31/32 Splines | 3-3-01646X
$80.04
10 in stock
Description
4103-322 1410 series nickel-plated Chevrolet transmission slip yoke, 31/32-spline x 1.378″ diameter, 8.070″ centerline to U-joint.
Full Description
4103-322 -- Nickel-Plated 1410 Transmission Yoke for Chevrolet, 31/32-Spline
The 4103-322 and 4103-327 share the same spline profile (31/32 x 1.378") and hub diameter (1.886"), but 4103-322 is longer (8.070" C/U-joint to end versus 6.938") and carries a nickel finish. Use the longer yoke when the transmission output requires more slip travel -- typical on full-size Chevy and GMC trucks where the transfer case is a bolt-on unit behind the transmission and the combined output requires the extra travel.
The nickel plating on 4103-322 is a corrosion-resistance feature that is especially useful on salt-belt trucks where the undercarriage is exposed to road brine. Inspect the plating condition at each service interval -- chips or flaking in the hub sealing surface area indicate the plating has failed and the base metal is corroding under the seal lip. Replace the yoke before the corrosion propagates to the spline form. Pair with a 1410 series U-joint and inspect the driveshaft assembly balance after any yoke replacement.
Alternative parts:
Additional information
| Center u joint to end | 8.070 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | Nickel Plated |
| Partn number | 4103-322 |
| Series | 1410 |
| Splines count dia | 31/32 X 1.378 |
