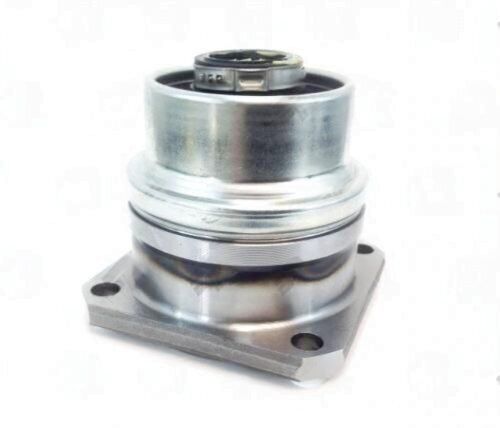

3R52-361 – CV Joint Kit – 30″ Splines Dia – Bolt Hole Dia 10.75″ – 34 Spline
$204.63
1 in stock
13 People watching this product now!
Description
3R52-361 CV joint kit for GM applications. 30mm spline dia, 34 splines, 4-bolt pattern, bolt hole dia 10.75mm. Gasket and boot cap included.
Full Description
3R52-361 CV Joint Kit 30" Splines Dia 34 Spline GM Application
The 3R52-361 is a CV joint kit specified for GM applications. It features a 30mm spline diameter with a 34-spline count, and a 4-bolt flange pattern with a bolt hole diameter of 10.75mm. The kit ships with gasket and boot cap part included.
Specifications
- Part Number: 3R52-361
- Splines Dia: 30mm
- Splines Count: 34
- Bolt Hole Count: 4
- Bolt Hole Dia: 10.75mm
- Gasket: Included
- Boot Cap Part: Included
- Notes: GM
When installing the 3R52-361, verify the stub shaft spline count of 34 and the 30mm spline diameter against the axle or driveshaft stub before proceeding. The 4-bolt pattern with 10.75mm bolt hole diameter must align with the companion flange on the GM application; confirm bolt circle dimensions on the vehicle side before ordering.
The included gasket and boot cap ensure the 3R52-361 can be installed as a complete assembly without sourcing additional sealing components separately. This kit is specific to GM drivetrain configurations—cross-reference the application's axle spline spec and flange bolt pattern against the listed dimensions of the 3R52-361 to confirm suitability.
Additional information
| Bolt hole count | 4 |
|---|---|
| Bolt hole dia | 10.75 |
| Splines count | 34 |
| Splines dia | 30 |
| Notes | GM |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Partn number | 3R52-361 |
