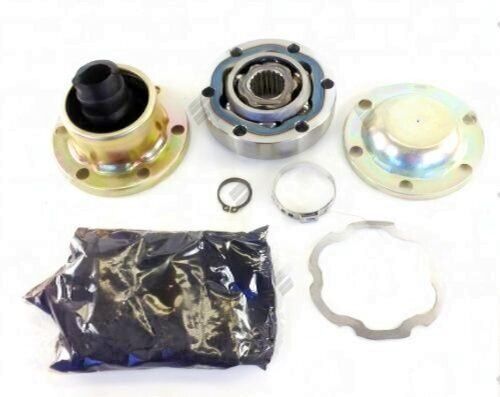

1452-8601 – CV Joint Kit – 22.75″ Splines dia – 86″ Outer Dia – 20 Spline
$126.53
5 in stock
Description
1452-8601 Volvo CV joint kit. 22.75mm spline, 20 splines, 86mm OD. Boot cap 1418-86, gasket included. 6-bolt, 8.4mm holes. Volvo driveshaft CV rebuild.
Full Description
1452-8601 is a CV joint kit for Volvo driveshaft applications, sharing the 86mm outer diameter with 1452-8602 but with a different spline specification: 22.75mm diameter and 20 splines versus 23.75mm and 21 splines on the 1452-8602. These two kits are for different vehicle applications despite similar outer diameters -- they are not interchangeable.
- Application: Volvo
- Spline Dia: 22.75mm
- Spline Count: 20
- Outer Dia: 86mm
- Inner Race Width: 22.1mm
- Outer Race Width: 21mm
- Bolt Holes: 6 x 8.4mm
- Boot Cap: 1418-86 (included)
- Gasket: Included
Volvo rear-wheel-drive and all-wheel-drive platforms use CV joints on driveshafts connecting the transmission or transfer case to the differential. Identify the specific Volvo model and shaft location before ordering -- Volvo changed CV joint specifications across model generations and between front and rear shafts.
Browse CV joint kits for Volvo and Scandinavian import driveshaft CV components.
Additional information
| Bolt hole dia | 8.4 |
|---|---|
| Boot cap part | 1418-86 |
| Gasket | INCLUDED |
| Inner race width | 22.1 |
| Outer dia | 86 |
| Outer race width | 21 |
| Splines count | 20 |
| Splines dia | 22.75 |
| Partn number | 1452-8601 |
| Bolt hole count | 6 |
| Notes | Volvo |
