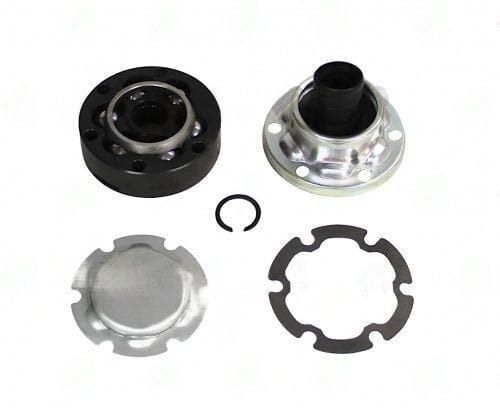

2752-1091 – CV Joint Kit – Bolt Hole Count 6″ – Outer Dia 108mm – Splines Dia 28.35mm
$175.69
1 in stock
15
People watching this product now!
Description
2752-1091 Land Rover CV joint kit. Outer dia 108mm, 34 splines at 28.35mm dia, 6-bolt flange with 10.4mm bolt holes, inner race width 26.1mm. Boot cap and gasket included.
Full Description
2752-1091 Land Rover CV Joint Kit – 108mm OD – 28.35mm Spline Dia – 34 Splines
The 2752-1091 is a CV joint kit for Land Rover applications. The outer race diameter is 108mm with an outer race width of 28mm. The inner race width measures 26.1mm. The spline bore is 34-spline with a 28.35mm diameter. The bolt circle uses 6 holes at 10.4mm diameter. Boot cap and gasket are included in the kit.
Specifications
- Part Number: 2752-1091
- Application: Land Rover
- Outer Dia: 108mm
- Outer Race Width: 28mm
- Inner Race Width: 26.1mm
- Splines Count: 34
- Splines Dia: 28.35mm
- Bolt Hole Count: 6
- Bolt Hole Dia: 10.4mm
- Boot Cap: Included
- Gasket: Included
When fitting the 2752-1091, verify the axle shaft spline count (34) and spline diameter (28.35mm) match the Land Rover application before installation. The 6-bolt flange with 10.4mm bolt holes must align with the companion flange on the output shaft.
The 108mm outer diameter and 28mm outer race width define the housing bore requirements for this Land Rover CV joint kit. Confirm the inner race width of 26.1mm against the shaft engagement depth before assembling the kit, and use the included boot cap and gasket as supplied.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4mm |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 26.1mm |
| Outer dia | 108mm |
| Outer race width | 28mm |
| Splines count | 34 |
| Splines dia | 28.35mm |
| Notes | Land Rover |
| Partn number | 2752-1091 |
