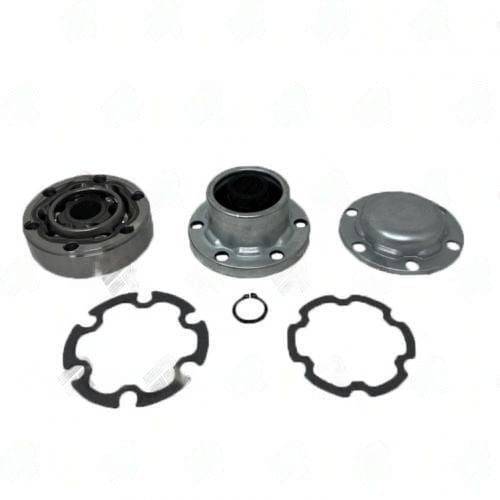

2852-9501 – CV Joint Kit – 25mm splines dia – Bolt Hole Dia 10.5mm – Inner Race Width 27.25mm
$127.86
0 in stock
17
People watching this product now!
Description
2852-9501 Mercedes CV joint kit. Outer dia 95mm, 30-spline 25mm bore, 6-bolt 10.5mm flange, inner race width 27.25mm. Boot cap and gasket included. Verify spline count before ordering.
Full Description
2852-9501 Mercedes CV Joint Kit – 95mm OD – 25mm Spline Dia – 30 Splines
The 2852-9501 is a CV joint kit for Mercedes applications. The outer race diameter is 95mm with an outer race width of 26.65mm. The inner race width measures 27.25mm. The spline bore is 30-spline with a 25mm diameter. The bolt circle uses 6 holes at 10.5mm diameter. Boot cap and gasket are included in the kit.
Specifications
- Part Number: 2852-9501
- Application: Mercedes
- Outer Dia: 95mm
- Outer Race Width: 26.65mm
- Inner Race Width: 27.25mm
- Splines Count: 30
- Splines Dia: 25mm
- Bolt Hole Count: 6
- Bolt Hole Dia: 10.5mm
- Boot Cap: Included
- Gasket: Included
When fitting the 2852-9501 on a Mercedes application, verify the axle shaft spline count (30) and diameter (25mm) against the shaft before installation. The 6-bolt flange with 10.5mm bolt holes must be confirmed against the companion flange.
The 95mm outer diameter and 26.65mm outer race width establish the housing bore requirements for this Mercedes CV joint kit. The 27.25mm inner race width determines shaft engagement depth — confirm this dimension before final assembly, and use the included boot cap and gasket as supplied.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.5mm |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 27.25mm |
| Outer dia | 95mm |
| Outer race width | 26.65mm |
| Splines count | 30 |
| Splines dia | 25mm |
| Notes | MERCEDES |
| Partn number | 2852-9501 |
