1452-8602 – CV Joint Kit – 23.75″ Splines Dia – 86″ Outer Dia – 22.1″ Inner Race Width
$129.09
2 in stock
Description
1452-8602 CV joint kit. 23.75mm spline, 21 splines, 86mm OD. M8-1.25x40mm socket bolts, boot cap 1418-86. 6-bolt, 8.4mm holes.
Full Description

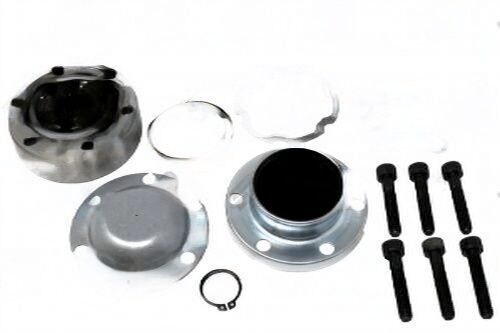

1452-8602 CV Joint Kit
1452-8602 is a CV joint replacement kit for applications using an 86mm outer diameter joint with 23.75mm spline diameter and 21 splines. Assembly uses M8-1.25x40mm socket head bolts. Boot cap part number is 1418-86 (referenced separately in some catalogs but available from UDS).
| Specification | Value |
|---|---|
| Spline Dia | 23.75mm |
| Spline Count | 21 |
| Outer Dia | 86mm |
| Inner Race Width | 22.1mm |
| Outer Race Width | 21mm |
| Bolt Holes | 6 x 8.4mm |
| Bolt Spec | M8-1.25x40mm socket |
| Boot Cap | 1418-86 |
| Gasket | N/A |
No gasket is required for this kit -- the boot cap seals without a separate gasket. The M8 socket head bolts are specific to this CV joint configuration and differ from the standard hex-head CV bolts on other kits. Use a proper socket head key (Allen hex driver) to torque these bolts accurately.
See all CV joint kits for small-diameter and European CV joint replacement.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.4 |
| Boot cap part | 1418-86 |
| Gasket | N/A |
| Inner race width | 22.1 |
| Outer dia | 86 |
| Outer race width | 21 |
| Splines count | 21 |
| Splines dia | 23.75 |
| Notes | M8-1.25x40mm socket bolts |
| Partn number | 1452-8602 |
