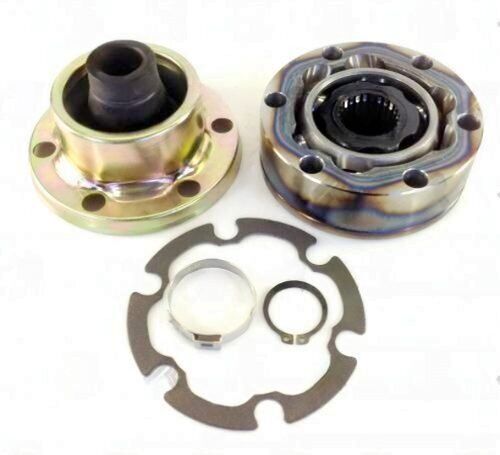

2752-9901 – CV Joint Kit – 28″ Splines dia – Outer Dia 99.45″ – Inner Race Width 28.15
$118.59
0 in stock
Description
2752-9901 BMW CV joint kit. 28mm spline, 25 splines, 99.45mm outer dia, 28.15mm inner race. 6-bolt, 10.4mm holes. Boot cap and gasket included.
Full Description
2752-9901 CV Joint Kit -- BMW Application
2752-9901 is a CV (constant velocity) joint kit for BMW driveshaft applications. The kit includes the boot cap and gasket, providing the major components needed for a CV joint rebuild or replacement.
| Specification | Value |
|---|---|
| Application | BMW |
| Spline Dia | 28mm |
| Spline Count | 25 |
| Outer Dia | 99.45mm |
| Inner Race Width | 28.15mm |
| Outer Race Width | 32mm |
| Bolt Holes | 6 x 10.4mm |
| Boot Cap | Included |
| Gasket | Included |
CV joint kits for BMW driveshafts require matching all three key dimensions: spline diameter, outer diameter, and race widths. A kit with correct outer diameter but wrong spline count will not engage the shaft properly. Verify all dimensions against your removed joint before ordering.
Browse CV joint kits for additional BMW and import driveshaft CV assemblies.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 28.15 |
| Outer dia | 99.45 |
| Outer race width | 32 |
| Splines count | 25 |
| Splines dia | 28 |
| Notes | BMW |
| Partn number | 2752-9901 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cv Joint Kit (28) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Splines count 24 Splines dia 20.3 Bolt hole dia 8.4 Outer dia 78 Outer race width 23.45 Inner race width 21 Bolt hole count 6 Gasket INCLUDED Boot cap part INCLUDED Notes Volvo Partn number 1452-7801 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole dia 8.4 Boot cap part 1418-86 Gasket INCLUDED Inner race width 22.1 Outer dia 86 Outer race width 21 Splines count 20 Splines dia 22.75 Partn number 1452-8601 Bolt hole count 6 Notes Volvo | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 8.4 Boot cap part 1418-86 Gasket N/A Inner race width 22.1 Outer dia 86 Outer race width 21 Splines count 21 Splines dia 23.75 Notes M8-1.25x40mm socket bolts Partn number 1452-8602 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 8.3 Boot cap part INCLUDED Gasket INCLUDED Inner race width 28.2 Outer dia 99.75 Outer race width 32 Splines count 25 Splines dia 28 Notes Audi Partn number 2552-1001 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 10.52 Boot cap part 2518-652 Gasket INCLUDED Inner race width 28.31 Outer dia 99.55 Outer race width 29.03 Splines count 25 Splines dia 27.98 Notes Porsche, VW Partn number 2552-1002 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 10.4 Boot cap part 2518-652 Gasket INCLUDED Inner race width 27.07 Outer dia 99.55 Outer race width 27.8 Splines count 32 Splines dia 26.92 Notes CADILLAC Partn number 2552-1003 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 10.4 Boot cap part INCLUDED Gasket INCLUDED Inner race width 28 Outer dia 108 Outer race width 32.2 Splines count 28 Splines dia 31.2 Partn number 2752-1081 Notes BMW | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 10.4mm Boot cap part INCLUDED Gasket INCLUDED Inner race width 26.1mm Outer dia 108mm Outer race width 28mm Splines count 34 Splines dia 28.35mm Notes Land Rover Partn number 2752-1091 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 8.3 Boot cap part INCLUDED Gasket INCLUDED Inner race width 24 Outer dia 94 Outer race width 32 Splines count 24 Splines dia 27 Notes BMW Partn number 2752-9401 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bolt hole count 6 Bolt hole dia 8.27 Boot cap part INCLUDED Gasket INCLUDED Inner race width 27.08 Outer dia 94 Outer race width 27.3 Splines count 30 Splines dia 24.19 Partn number 2752-942 Notes FITS JAGUAR, CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
