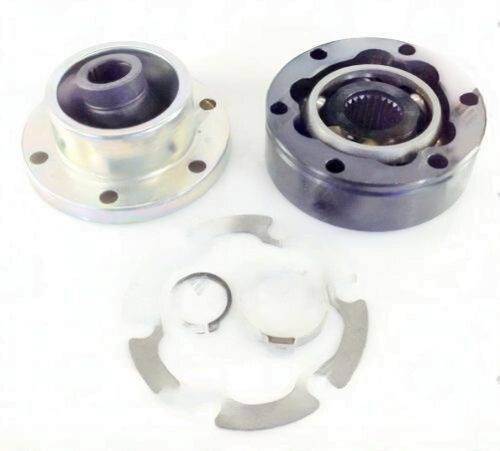

2552-1001 – CV Joint Kit – 28″ Splines dia – Bolt Hole Dia 8.3″ – Outer Dia 99.73 Audi APP, Plunge
$122.98
11 in stock
Description

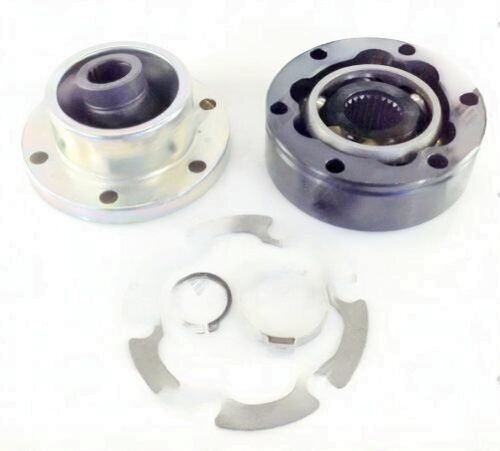

2552-1001 Audi CV joint kit (APP plunge type). 28mm spline, 25 splines, 99.75mm OD. 6-bolt 8.3mm holes. Boot cap and gasket. Audi driveshaft CV rebuild.
Full Description
2552-1001 is an Audi driveshaft CV joint kit for the APP (Audi-style plunge) configuration. Plunge-type CV joints allow axial travel within the joint itself, making them the sliding (inboard) CV joint in an axle assembly rather than the fixed (outboard) type. The 28mm spline diameter and 25-spline count is specific to this Audi application.
- Application: Audi (APP Plunge)
- Spline Dia: 28mm
- Spline Count: 25
- Outer Dia: 99.75mm
- Inner Race Width: 28.2mm
- Outer Race Width: 32mm
- Bolt Holes: 6 x 8.3mm
- Boot Cap: Included
- Gasket: Included
Plunge CV joints must not be confused with fixed-joint kits -- they have different internal geometry. Confirm whether your application requires a plunge (sliding) or fixed (non-plunging) joint before ordering. The bolt hole count (6) and diameter (8.3mm) can also help confirm the correct kit by matching to the companion flange.
Browse CV joint kits for Audi and other European driveshaft CV components.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.3 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 28.2 |
| Outer dia | 99.75 |
| Outer race width | 32 |
| Splines count | 25 |
| Splines dia | 28 |
| Notes | Audi |
| Partn number | 2552-1001 |
