2752-9401 – CV Joint Kit – 27″ Splines dia – Outer Dia 94″ – 24 Spline
$119.24
0 in stock
Description

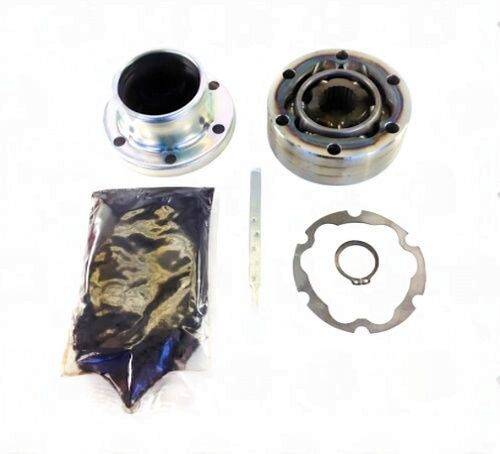

2752-9401 BMW CV joint kit. 27mm spline, 24 splines, 94mm OD. 6-bolt 8.3mm holes. Boot cap and gasket included. BMW driveshaft CV replacement.
Full Description
2752-9401 CV Joint Kit -- BMW Application
2752-9401 is a BMW driveshaft CV joint replacement kit with 27mm spline diameter and 24 splines. This is a different specification from 2752-9901 (BMW, 28mm/25 splines) -- both are BMW applications but for different model lines or shaft positions. Confirm spline diameter and count against the removed joint before ordering.
| Spec | Value |
|---|---|
| Application | BMW |
| Spline Dia | 27mm |
| Spline Count | 24 |
| Outer Dia | 94mm |
| Inner Race Width | 24mm |
| Outer Race Width | 32mm |
| Bolt Holes | 6 x 8.3mm |
| Includes | Boot cap, gasket |
BMW uses multiple CV joint specifications across different model lines and years. The 94mm OD matches 2752-942 (Jaguar), but the spline count (24 vs. 30) and spline diameter (27mm vs. 24.19mm) are completely different -- OD alone is not sufficient for selection. Always cross-reference spline count and diameter.
Browse all CV joint kits for BMW and other import applications.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.3 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 24 |
| Outer dia | 94 |
| Outer race width | 32 |
| Splines count | 24 |
| Splines dia | 27 |
| Notes | BMW |
| Partn number | 2752-9401 |
