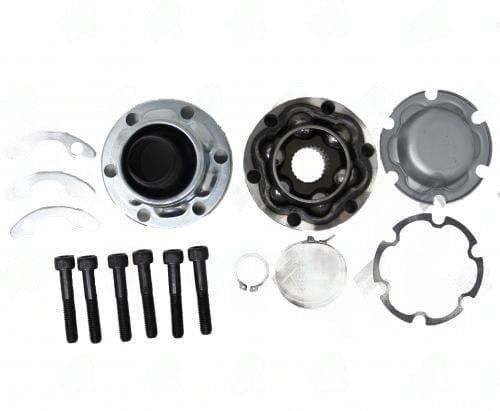

3152-1004 – CV Joint Kit – Outer Dia 100″ – Inner Race Width 27.6mm – 26 Spline
$99.91
9 in stock
12
People watching this product now!
Description
3152-1004 CV joint kit. Outer dia 100mm, 26-spline 29mm bore, 6-bolt 10.4mm flange, recessed M10-1.5 end cap, inner race 27.6mm. Boot cap and gasket included.
Full Description
3152-1004 CV Joint Kit – 100mm OD – 29mm Spline Dia – 26 Splines – Recessed End Cap
The 3152-1004 is a CV joint kit with a 100mm outer race diameter and 34.5mm outer race width. The inner race width measures 27.6mm. The spline bore is 26-spline with a 29mm diameter. The bolt circle uses 6 holes at 10.4mm diameter. Boot cap and gasket are included. This kit features a recessed end cap with M10-1.5 threading.
Specifications
- Part Number: 3152-1004
- Outer Dia: 100mm
- Outer Race Width: 34.5mm
- Inner Race Width: 27.6mm
- Splines Count: 26
- Splines Dia: 29mm
- Bolt Hole Count: 6
- Bolt Hole Dia: 10.4mm
- End Cap: Recessed, M10-1.5 thread
- Boot Cap: Included
- Gasket: Included
When fitting the 3152-1004, verify the axle shaft spline count (26) and diameter (29mm) before installation. The recessed end cap with M10-1.5 thread is a defining feature — confirm the application requires this cap style rather than a standard flush-cap joint before ordering.
The 100mm outer diameter and 34.5mm outer race width establish the housing bore requirements. The 27.6mm inner race width determines axle shaft engagement depth. Cross-reference all three dimensions — spline count, outer diameter, and end cap thread spec — to confirm the 3152-1004 is the correct kit for the application.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4mm |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 27.6mm |
| Outer dia | 100 |
| Outer race width | 34.5mm |
| Splines count | 26 |
| Splines dia | 29mm |
| Notes | Recessed End Cap, M10-1.5 |
| Partn number | 3152-1004 |
