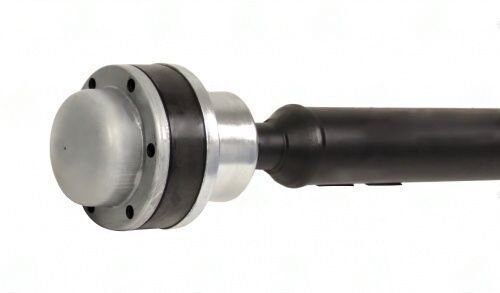

3152-1002 – CV Joint Kit – 01.08″ Splines Dia – Bolt Hole Dia 8.5″ – Outer Dia 100
$166.41
0 in stock
19
People watching this product now!
Description
3152-1002 Jeep Chrysler Dodge CV joint kit. Outer dia 100mm, 25-spline 1.08″ bore, 6-bolt 8.5mm flange, race width 40mm. Boot cap and gasket included. Verify spline count.
Full Description
3152-1002 Jeep Chrysler Dodge CV Joint Kit – 100mm OD – 25 Splines – 8.5mm Bolt Hole
The 3152-1002 is a CV joint kit for Jeep, Chrysler, and Dodge applications. The outer race diameter is 100mm with an outer race width of 40mm. The inner race width measures 40mm. The spline bore is 25-spline with a 1.08" diameter. The bolt circle uses 6 holes at 8.5mm diameter. Boot cap and gasket are included in the kit.
Specifications
- Part Number: 3152-1002
- Application: Jeep, Chrysler, Dodge
- Outer Dia: 100mm
- Outer Race Width: 40mm
- Inner Race Width: 40mm
- Splines Count: 25
- Splines Dia: 1.08"
- Bolt Hole Count: 6
- Bolt Hole Dia: 8.5mm
- Boot Cap: Included
- Gasket: Included
When fitting the 3152-1002 on a Jeep, Chrysler, or Dodge application, verify the axle shaft spline count (25) and spline diameter (1.08") against the shaft before installation. The 8.5mm bolt holes are smaller than the 10.4mm used on other 3152-series kits — confirm the companion flange bolt diameter before ordering.
The 40mm outer and inner race width on the 3152-1002 is notably wider than competing 100mm OD kits in the catalog, reflecting the heavier-duty Chrysler/Jeep/Dodge platform requirements. Cross-reference the 25-spline 1.08" bore and 8.5mm bolt hole specification against the specific vehicle application before ordering.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.5 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 40 |
| Outer dia | 100 |
| Outer race width | 40 |
| Splines count | 25 |
| Splines dia | 01.08 |
| Notes | Jeep, Chrysler, Dodge |
| Partn number | 3152-1002 |
