3626-961 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 2.344″ – Face To Weld 1.150

3626-961 Cadillac Tri Prong – 96MM Bolt Circle – 2.344" Butt Dia – 1.150" Face to Weld

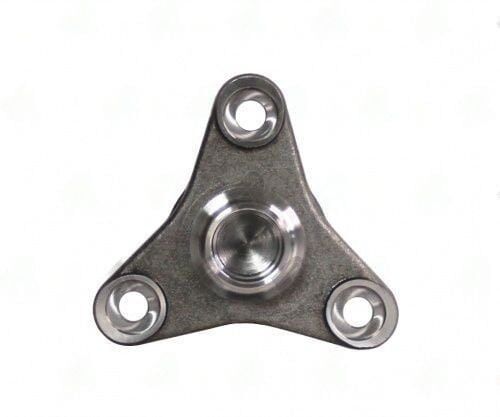

The 3626-961 is a tri prong flange yoke for Cadillac applications. The bolt circle diameter is 96MM with 12MM bolt holes and an 18mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.150". The nose bushing diameter is 32MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 3626-961
• Application: Cadillac
• Bolt Circle Dia: 96MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: 18mm
• Nose Bushing Dia: 32MM
• Butt Dia: 2.344"
• Face to Weld: 1.150"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 3626-961, confirm the driveshaft tube measures 2.500" OD with 0.083" wall thickness before welding. The 2.344" butt diameter must be a close fit to the tube ID; verify the tube is cut square before tacking. Confirm the 96MM bolt circle and 18mm pilot diameter against the Cadillac companion flange. The 3626-961 and 3626-960 share the 96MM bolt circle and 2.344" butt diameter; the two differ in face-to-weld length (1.150" vs 1.219"). Measure the required face-to-weld dimension from the companion flange face to the weld centerline on the shaft before selecting between these two Cadillac variants.
