2726-250 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 2.344″ – Face To Weld 1.125

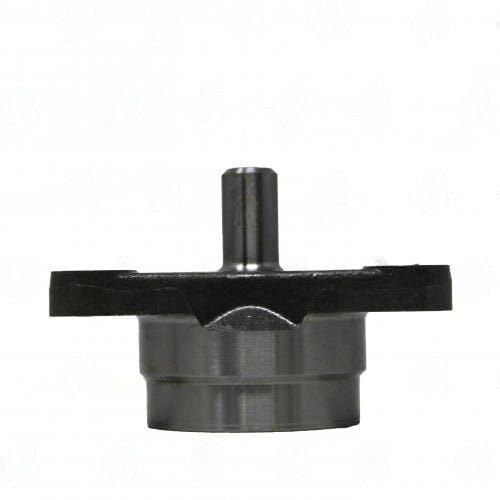

2726-250 Tri & Quad Prong Weld Flange — Male Pin Style

The 2726-250 is a tri/quad prong weld flange featuring a male pin style nose, with a 96MM bolt circle and 12MM bolt holes. The butt diameter is 2.344" and the face-to-weld dimension is 1.125". A 16MM nose bushing diameter accommodates the male pin engagement, distinguishing this part from bushing-style variants on the same bolt circle. The weld end is designed for a 2.500" OD x 0.083" wall tube.

Specifications

• Part Number: 2726-250
• Bolt Circle Diameter: 96MM
• Bolt Hole Diameter: 12MM
• Bolt Hole Pilot Diameter: N/A
• Butt Diameter: 2.344"
• Face to Weld: 1.125"
• Nose Bushing Diameter: 16MM
• Tube Diameter x Wall: 2.500 x 0.083"
• Style: Male Pin

When fitting the 2726-250, verify the companion flange accepts the male pin style interface at 16MM — this is not interchangeable with a female bushing configuration at the same 96MM bolt circle. The heavier 0.083" wall tube specification versus the 0.065" wall used on similar 2726-series parts results in a higher weld joint capacity; match tube wall exactly before welding. The 2726-250 shares the 96MM bolt circle with the 2726-251 but differs in nose bushing diameter (16MM vs 28MM) and tube wall (0.083" vs 0.065"). Confirm which pin engagement style your companion flange requires before selecting between these variants.
