2526-960 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 2.344″ – Face To Weld 1.500

2526-960 Tri & Quad Prong Weld Flange — Threaded 10x1.50 Bolt Holes

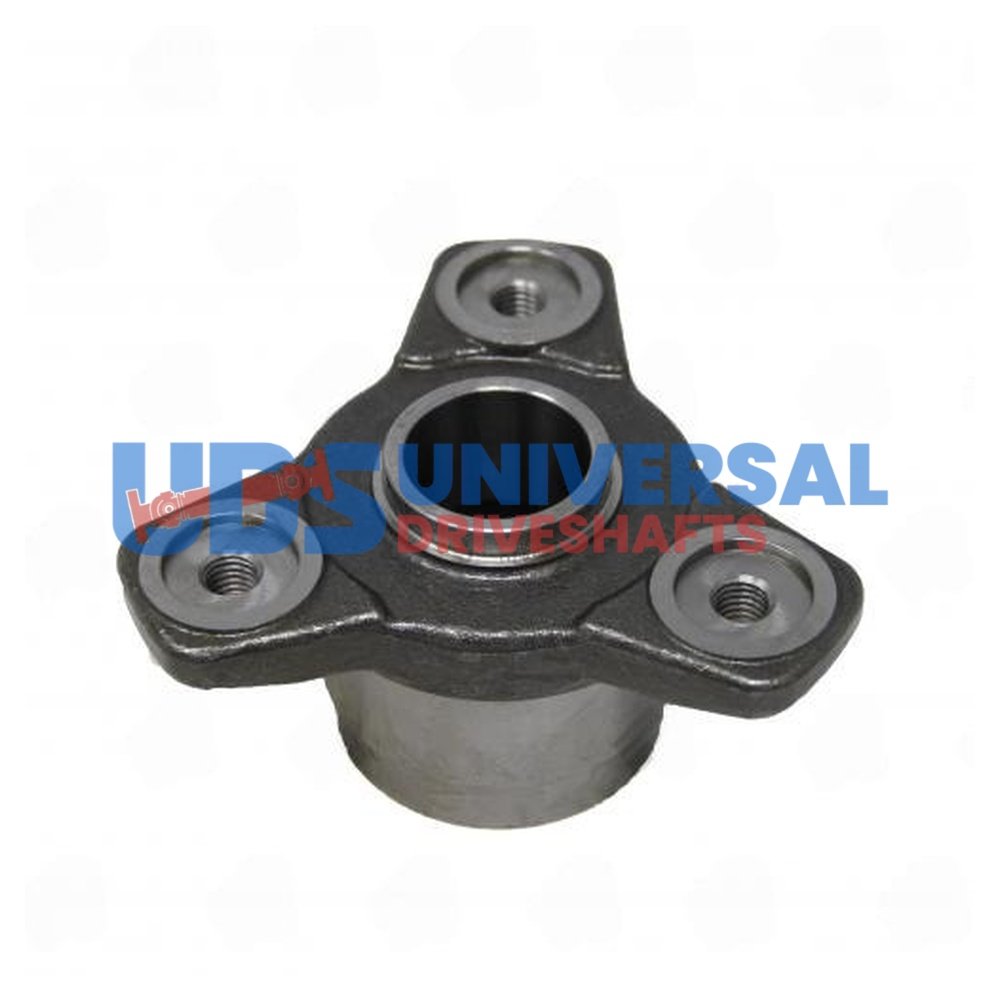

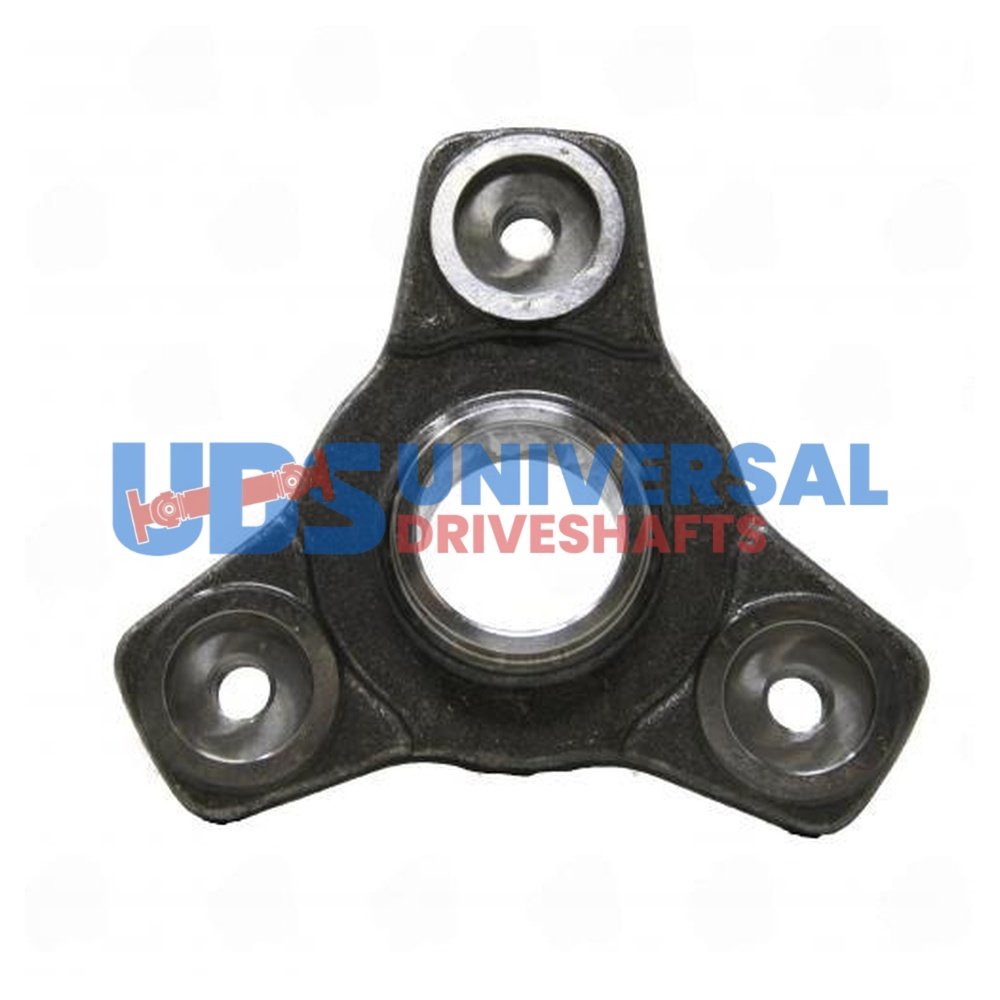

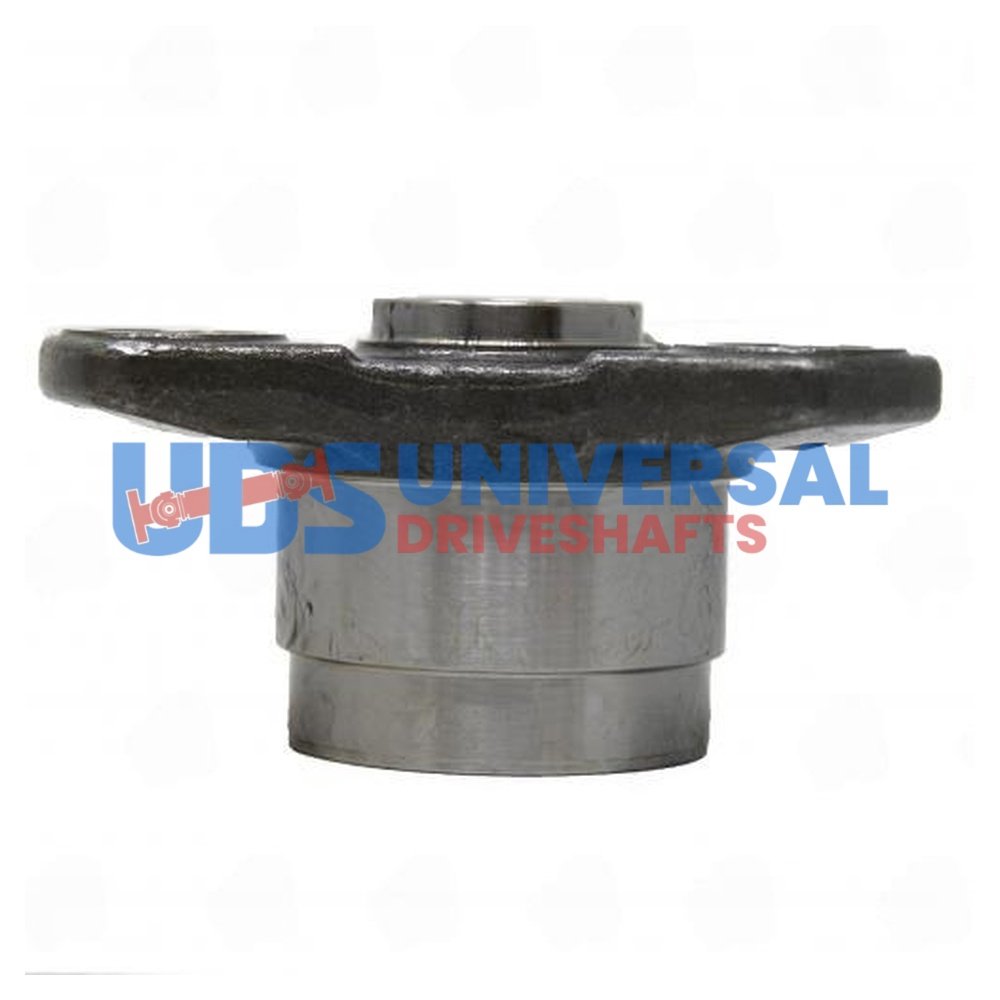

The 2526-960 is a tri/quad prong weld flange with a 96MM bolt circle and threaded 10x1.50 bolt holes — a threaded-insert style rather than a through-clearance hole. The butt diameter is 2.344" and the face-to-weld dimension is 1.500". A 31MM nose bushing centers the flange, and the bolt hole pilot diameter is 22MM. The weld end fits a 2.500" OD x 0.083" wall tube.

Specifications

• Part Number: 2526-960
• Bolt Circle Diameter: 96MM
• Bolt Hole Diameter: THRD 10x1.50
• Bolt Hole Pilot Diameter: 22MM
• Butt Diameter: 2.344"
• Face to Weld: 1.500"
• Nose Bushing Diameter: 31MM
• Tube Diameter x Wall: 2.500 x 0.083"

When fitting the 2526-960, the threaded 10x1.50 bolt holes require matching 10MM x 1.50 pitch studs or bolts at the companion flange — do not use clearance-hole hardware. The 22MM pilot bore centers against the companion flange pilot; verify that pilot diameter before assembly. The 1.500" face-to-weld distance is longer than the 1.125" dimension seen on 2726-series parts, so confirm the correct axial position in the shaft assembly. The 2526-960 uses a 31MM nose bushing, matching the 2526-105. Both share a 96MM bolt circle and 1.500" face-to-weld but differ in bolt hole specification — clearance vs. threaded. Confirm thread engagement versus clearance hole requirement at the companion flange before selecting between the two.
