2726-202 – Tri & Quad Prongs – Bolt Circle Dia 78MM – Butt Dia 1.844″ – Face To Weld 1.125

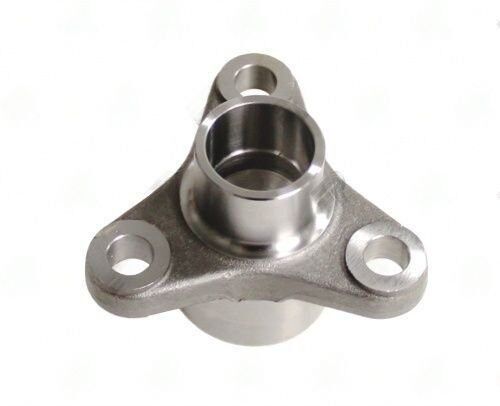

2726-202 Tri & Quad Prong Weld Flange — BMW Application

The 2726-202 is a tri/quad prong weld flange for BMW driveshaft applications, using a 78MM bolt circle with 12MM bolt holes. The butt diameter is 1.844" and the face-to-weld dimension is 1.125". Centering is provided by a 28MM nose bushing. The weld end is designed for a 2.000" OD x 0.083" wall tube. This part shares the same bolt circle as the 2726-203 but uses a larger 12MM bolt hole rather than 10MM.

Specifications

• Part Number: 2726-202
• Bolt Circle Diameter: 78MM
• Bolt Hole Diameter: 12MM
• Bolt Hole Pilot Diameter: N/A
• Butt Diameter: 1.844"
• Face to Weld: 1.125"
• Nose Bushing Diameter: 28MM
• Tube Diameter x Wall: 2.000 x 0.083"
• Application: BMW

When fitting the 2726-202, the key differentiation from the 2726-203 is bolt hole diameter: this part requires 12MM fasteners on the companion flange versus 10MM on the 203. Confirm fastener size at the BMW companion flange before selecting between these two variants. Tube fit and weld prep remain the same at 2.000 x 0.083". Both the 2726-202 and 2726-203 share the 78MM bolt circle and 28MM nose bushing and are specific to BMW applications with a 1.844" butt diameter. The bolt hole size difference is the sole dimensional distinction — measure the companion flange fastener diameter before ordering the 2726-202.
