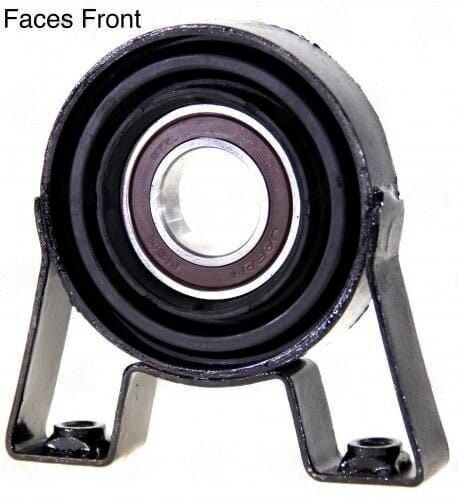

1480-50 – Center Support Bearing – Volvo Application – 985″ ID – 2.437″ Center Bearing To Base
$79.85
6 in stock
17
People watching this product now!
Description
1480-50 center bearing — Volvo. Bearing ID: 0.985″. Center-to-base: 2.437″. Spacing: 3.000″. Narrow-mount Volvo driveshaft configuration.
Full Description
The 1480-50 is a center support bearing for Volvo driveshaft applications. It stands out in the center bearing catalog with the narrowest mount hole spacing of any unit in this series at 3.000" center-to-center. Most center bearings span 5.000"-7.000" between mounting holes; the 3.000" span reflects a distinctly compact Volvo crossmember mounting configuration.
The 2.437" center-to-base dimension is tall relative to the compact hole spacing. This combination of narrow span and tall height produces a bearing that is physically tall and narrow - matching Volvo's typical driveshaft tunnel architecture on RWD and AWD platform vehicles.
- Part Number: 1480-50
- Application: Volvo
- Bearing ID: 0.985"
- Center-to-Base: 2.437"
- Mount Hole Spacing: 3.000"
The 3.000" spacing is the primary identifier for this bearing. Before ordering, measure the distance between your two mounting bolt holes. A 3.000" measurement confirms the 1480-50 is the correct part. The 0.985" inner bore corresponds to a 25mm driveshaft stub, standard for this Volvo application. Confirm your stub diameter with a caliper as some variants use 30mm stubs with a different bearing number.
Additional information
| Application | VOLVO |
|---|---|
| Bearing id | 985 |
| Center bearing to base | 2.437 |
| Ctr to ctr of mount holes | 3.000 |
| Partn number | 1480-50 |
