1280-74 – 74 – Center Support Bearing – Infiniti Q50, Q60 Application – 1.181″ ID
$93.36
1 in stock
13
People watching this product now!
Description
1280-74 center support bearing for INFINITI Q50, Q60. Bearing ID 1.181″, mount holes ” C-to-C. Verify stub shaft OD and bracket spacing.
Full Description

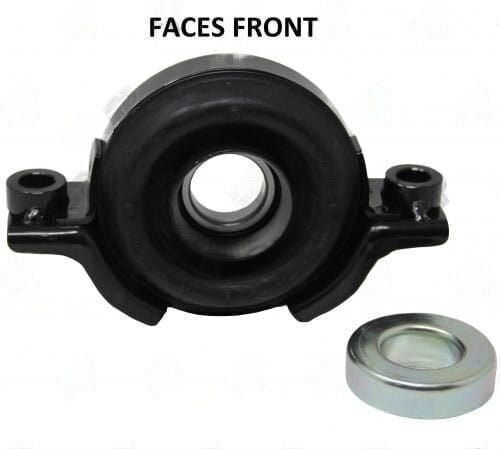

1280-74 Center Support Bearing - INFINITI Q50, Q60
The 1280-74 (also referenced as 1280/74) is a center support bearing manufactured by UDS. In a two-piece driveshaft layout, the center support bearing carries the midship stub shaft at the point where the front and rear driveshaft sections meet. The bearing presses into a rubber-isolated housing that bolts to the vehicle frame or crossmember. This bearing is catalogued for INFINITI Q50, Q60 applications.
The bearing inner bore (ID) is 1.181 inches — this must match the outer diameter of the midship stub shaft exactly. Even a small mismatch causes either interference fit problems or excessive play. 3 mm spacer.
Specifications
- Part Number: 1280-74
- Brand: UDS
- Application: INFINITI Q50, Q60
- Bearing id: 1.181
- Ctr to ctr of mount holes: 6.000
- Notes: 3 mm spacer
Fitment & Installation Notes
Before ordering the 1280-74, measure the midship stub shaft OD and confirm it matches the 1.181-inch bore. Also verify the frame bracket hole spacing matches the -inch center-to-center dimension. The rubber isolator in the housing should be replaced if cracked or oil-contaminated, as a degraded isolator transmits driveshaft vibration directly to the chassis.
View the full range of Center Support Bearings for two-piece driveshaft applications.
Additional information
| Application | INFINITI Q50, Q60 |
|---|---|
| Bearing id | 1.181 |
| Ctr to ctr of mount holes | 6.000 |
| Notes | 3 mm spacer |
| Partn number | 1280-74 |
