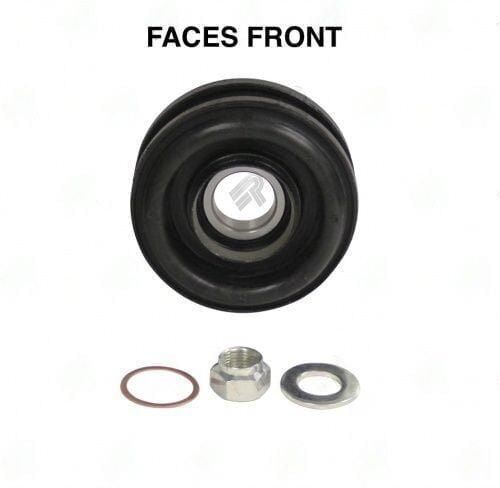

1280-30 – Center Support Bearing – 1.181 – 2.170 – 6.000
$85.09
10 in stock
12 People watching this product now!
Description
1280-30 Center Support Bearing — Nissan, Infiniti series, 1.181″ inner dia | 2.170″ center-to-base | 6.000″ mount spacing. Complete replacement. Verify inner dia and mount spacing.
Full Description
The 1280-30 center support bearing supports the midshaft section of a two-piece driveshaft, keeping it running concentric with the vehicle's drivetrain axis. When this bearing fails, the midshaft droops and the driveshaft angles change — you'll feel it as a vibration that gets progressively worse at highway speed. The 1280-30 center support bearing is the correct replacement for Nissan, Infiniti series applications, with the exact inner diameter and mount hole spacing your application requires.
1280-30 Center Support Bearing — Nissan, Infiniti Series Dimensions & Mount Specs
The 1280-30 center support bearing specs: 1.181" inner dia | 2.170" center-to-base | 6.000" mount spacing. Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer. Application: Nissan, Infiniti series. Inner diameter must match the midshaft stub OD exactly — a loose fit allows the bearing to walk on the shaft, which causes vibration and accelerates wear on both the bearing race and the shaft surface. Mount hole center-to-center spacing must match your crossmember bracket.
When replacing a center support bearing on a two-piece shaft, replace the complete assembly — bearing race, rubber isolator, and bracket together. A new race in an old hardened rubber mount still vibrates. The rubber isolator is what actually absorbs the midshaft movement; without it the bearing transmits every frequency directly to the frame.
Key Features
- Application: Nissan, Infiniti series — verify your driveshaft series matches
- Bearing inner dia: 1.181" — must match midshaft stub OD exactly
- Center-to-base: 2.170" — height from shaft centerline to mounting surface
- Mount hole spacing: 6.000" — must match crossmember bracket exactly
- Complete assembly — bearing race, rubber isolator, and bracket as one unit
- Rubber isolator included — absorbs midshaft vibration, reduces NVH to frame
- Note: Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer
Specifications
- SKU: 1280-30
- Brand: UDS
- Application: Nissan, Infiniti Series
- Bearing ID: 1.181"
- Center to Base: 2.170"
- Mount Hole Spacing: 6.000"
- Notes: Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer
Additional information
| Application | Nissan, Infiniti |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.170 |
| Ctr to ctr of mount holes | 6.000 |
| Notes | Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer |
| Partn number | 1280-30 |
