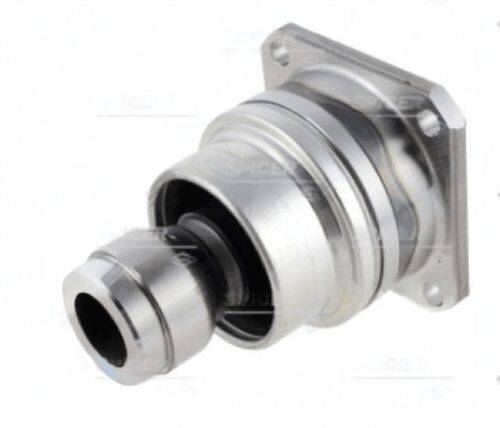

5011207 – CV Joint Kit – 1.844″ Splines Dia – Bolt Hole Dia 10.3″ – Outer Race Width 3.627
$211.08
0 in stock
Description
5011207 CV joint kit. Spline dia 1.844″ (inch), 10.3mm bolt holes, 3.627″ outer race width. Inch-spec CV joint — verify all dimensions before ordering.
Full Description
5011207 CV Joint Kit
5011207 is a CV joint kit specified in inch dimensions rather than metric -- the spline diameter is 1.844" and the outer race width is 3.627". This inch-specification CV joint is associated with domestic or industrial driveshaft applications where metric-dimensioned European joints are not the correct replacement.
| Spec | Value |
|---|---|
| Spline Dia | 1.844" |
| Bolt Hole Dia | 10.3mm |
| Outer Race Width | 3.627" |
Mixed inch/metric dimensions (inch spline with metric bolt holes) can indicate an aftermarket or transitional application. Verify all three dimensions -- spline diameter, bolt hole size, and race width -- against the removed joint before ordering. An inch-spec spline will not engage a metric-spec female race of similar nominal size.
See all CV joint kits for additional CV joint applications.
Additional information
| Bolt hole dia | 10.3 |
|---|---|
| Outer race width | 3.627 |
| Splines dia | 1.844 |
| Partn number | 5011207 |
