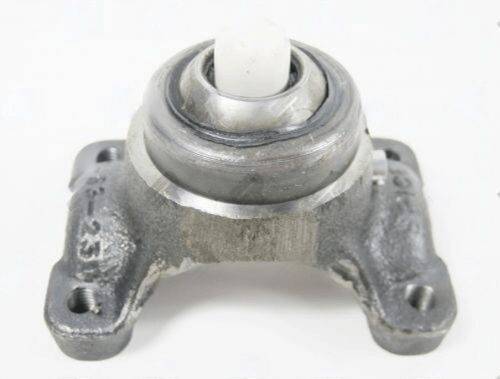

211342X – Cv Link Yokes – 1210 Series – Bolt Hole Dia .250-28 – Ball Stud Dia 500
$99.52
0 in stock
20
People watching this product now!
Description
211342X UDS 1210 ball stud yoke. Fits tube, ” butt, ball stud . Verify tube spec and ball stud diameter before welding.
Full Description
211342X UDS 1210 Ball Stud Yoke
The 211342X is a 1210 series ball stud yoke manufactured by UDS. A ball stud yoke is welded to a driveshaft tube on one end, and the ball stud on the opposite end engages a CV joint socket or centering ball assembly in a double-cardan (CV) driveshaft configuration. This design allows high operating angles with reduced vibration compared to a single-cardan U-joint at the same angle.
The tube specification is ; the weld end seats against tube with that OD and wall combination. The butt diameter is inches. The center-U-joint-to-weld dimension is inches. The ball stud measures (length x diameter). The 1210 series is the lightest-duty range, with a 1.062-inch cap diameter, suited for light-duty passenger cars and small trucks.
Specifications
- Part Number: 211342X
- Brand: UDS
- Series: 1210
- Bolt hole dia: .250-28
- Ball stud dia: 500
- Center u joint to end: 1.531
Fitment & Installation Notes
Confirm the tube OD and wall match before welding the 211342X. The ball stud diameter must correspond to the CV centering socket on the mating component. Ball stud yokes are not interchangeable with standard weld yokes in the same application.
View the full range of Driveshaft Components for CV and double-cardan driveshaft applications.
Additional information
| Bolt hole dia | .250-28 |
|---|---|
| Partn number | 211342X |
| Series | 1210 |
| Ball stud dia | 500 |
| Center u joint to end | 1.531 |
