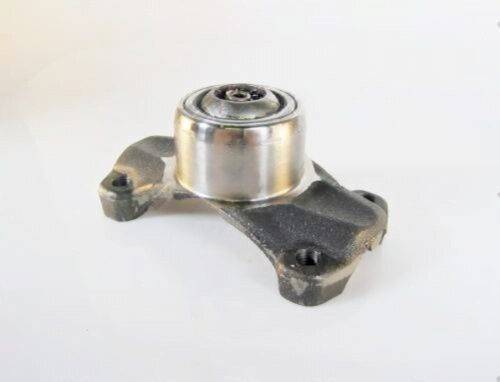

211996X – Cv Link Yokes – 1330 Series – Bolt Hole Dia .312-24 – Ball Stud Dia 500
$118.04
2 in stock
Description
211996X Spicer 1330 CV link yoke. Ball stud 0.500″, bolt .312-24, CJ to end 1.690″. Long socket, socket ID 0.1652. 1330 series double-cardan link.
Full Description
211996X is a Spicer 1330 series CV link yoke with a long socket configuration -- the socket ID is 0.1652", noted in the product data as a larger than standard socket bore. The longer socket is required in certain 1330 CV joint assemblies where the ball stud engagement depth must be greater to carry the load without bottoming or disengaging at full articulation.
- Series: 1330
- Ball Stud Dia: 0.500"
- Bolt Hole Thread: .312-24
- CJ to End: 1.690"
- Socket ID: 0.1652" (long socket)
When replacing a 1330 series link yoke, determine whether the assembly uses a standard-socket or long-socket link yoke before ordering. Installing a standard-socket yoke in a long-socket application reduces ball engagement and can cause the centering function to fail under high angles.
See all CV joint kits for 1330 series double-cardan components.
Additional information
| Bolt hole dia | .312-24 |
|---|---|
| Notes | LONG SOCKER – SOCKET ID .1652 |
| Partn number | 211996X |
| Series | 1330 |
| Center u joint to end | 1.690 |
| Ball stud dia | 500 |
