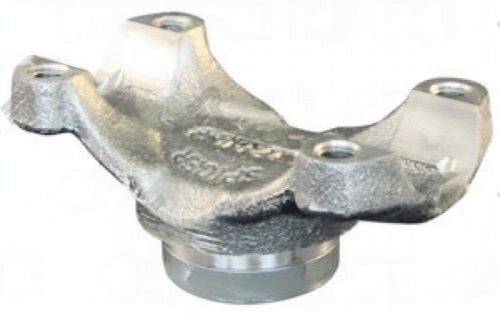

211179X – Cv Link Yokes – 1330 Series – Bolt Hole Dia .312-24 – Ball Stud Dia 500
$39.80
2 in stock
Description
211179X Spicer 1330 CV link yoke. Ball stud 0.500″, bolt .312-24, CJ to end 1.562″. Standard socket — compare 211996X (long socket) for 1330 series.
Full Description
211179X Spicer -- 1330 Series CV Link Yoke (Standard Socket)
211179X is the standard-socket 1330 series CV link yoke. Compare with 211996X (long socket, 0.1652" socket ID, 1.690" CJ-to-end) for applications requiring extended ball engagement. 211179X uses the shorter 1.562" CJ-to-end dimension and standard socket geometry.
| Spec | 211179X (Standard) | 211996X (Long Socket) |
|---|---|---|
| Series | 1330 | 1330 |
| Ball Stud Dia | 0.500" | 0.500" |
| Bolt Thread | .312-24 | .312-24 |
| CJ to End | 1.562" | 1.690" |
| Socket | Standard | Long (0.1652" ID) |
If you are replacing a 1330 series link yoke and are uncertain whether it is standard or long socket, measure the CJ-to-end distance on the removed yoke. Standard (211179X) measures approximately 1.562"; long socket (211996X) measures approximately 1.690".
Browse CV joint kits for complete 1330 double-cardan CV component selection.
Additional information
| Bolt hole dia | .312-24 |
|---|---|
| Partn number | 211179X |
| Series | 1330 |
| Center u joint to end | 1.562 |
| Ball stud dia | 500 |
