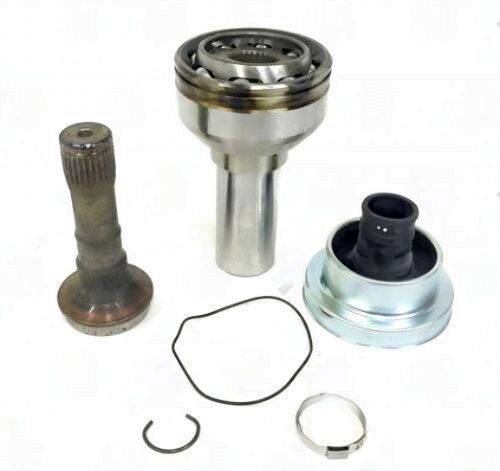

3152-9201 – CV Joint Kit – 29.5″ Splines Dia – 27 Spline
$339.74
1 in stock
13 People watching this product now!
Description
3152-9201 CV joint kit for Dodge applications. 29.5mm spline dia, 27 splines, outer dia 92mm. Gasket and boot cap included.
Full Description
3152-9201 CV Joint Kit 29.5" Splines Dia 27 Spline Dodge Application
The 3152-9201 is a CV joint kit for Dodge applications. It features a 29.5mm spline diameter with a 27-spline count and an outer diameter of 92mm. The kit includes gasket and boot cap part.
Specifications
- Part Number: 3152-9201
- Splines Dia: 29.5mm
- Splines Count: 27
- Outer Dia: 92mm
- Gasket: Included
- Boot Cap Part: Included
- Notes: Dodge
When fitting the 3152-9201, confirm the stub shaft presents 27 splines at a 29.5mm diameter before installation. The outer diameter of 92mm defines the housing bore requirement on the Dodge application—verify this clearance dimension against the knuckle or differential housing before ordering.
The included gasket and boot cap allow complete assembly without sourcing additional components. The 3152-9201 is specific to Dodge drivetrain configurations; cross-reference the spline count and outer diameter against the vehicle's axle specification to confirm correct fitment before installation.
Additional information
| Splines count | 27 |
|---|---|
| Splines dia | 29.5 |
| Outer dia | 92 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | Dodge |
| Partn number | 3152-9201 |
