3503-31CV

SKU: 3503-31CV

$90.34

18 People watching this product now!

Fast Shipping

Choose your Delivery Company

2k products

And múltiple Payment methods

24/7 Support

Unlimited help via our support channels

2-3 day Delivery

Track all your orders

Description

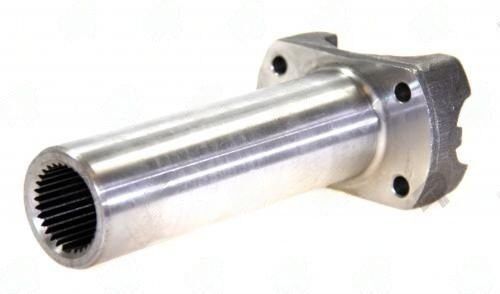

The 3503-31CV slip yoke is designed for Ford vehicles with a 31 spline transfer case output, such as those with E4OD and 4R100 transmissions. This 1350 series yoke matches the Spicer 3-3-5431X in spline and hub dimensions. It features a 1.188-inch bearing cap diameter, a 1.886-inch hub diameter, and a centerline to end measurement of 7.312 inches. It also includes a centerline to washer dimension of 1.00 inch and uses CV bolts 5-73-1228. Constructed from forged chromoly, this yoke is built for durability and high performance.

Additional information
Weight 10 lbs
Dimensions 25 × 18 × 10 in
Center u joint to end

7.312

Counter bore dia

0

Hub dia

1.886

Partn number

3503-31CV

Remaining stock

<10

Series

1350

Splines count dia

30/31 X 1.391
