3503-316 – Transmission Yokes – 1350 Series – 30/31 X 1.391 Splines – 1.685″ Hub Dia
$85.60
Description

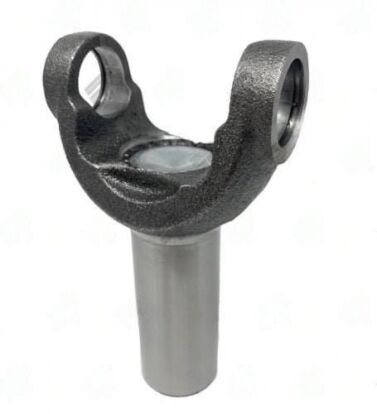

3503-316 1350 series full-spline transmission yoke, 30/31-spline x 1.391″ diameter, 6.000″ centerline to U-joint, 1.685″ hub.
Full Description
Full-spline construction means the engagement between the yoke and the output shaft spans the full usable length of the hub bore -- maximizing the torque-carrying spline contact area. This is particularly important in high-cycle applications where partial-spline designs develop fretting corrosion at the spline termination step.
- Series: 1350 -- 1.188" U-joint cap diameter
- Splines: 30/31 x 1.391" -- full-spline engagement throughout hub bore
- C/U-joint to end: 6.000" -- shorter than many 1350 series yokes; confirm driveshaft length before ordering
- Hub: 1.685" -- specific to the transmission output seal bore; a different OD from most GM TH400 yokes (1.886")
- No counterbore -- hub centering only
The 1.685" hub OD on 3503-316 aligns with Chrysler and some Ford transmission outputs -- different from the GM TH400 1.886" hub family. Confirm your specific transmission output seal bore before ordering. The 6.000" length is appropriate for standard-wheelbase RWD cars and light trucks at this hub specification.
Additional information
| Center u joint to end | 6.000 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.685 |
| Notes | Full Spline |
| Partn number | 3503-316 |
| Series | 1350 |
| Splines count dia | 30/31 X 1.391 |
