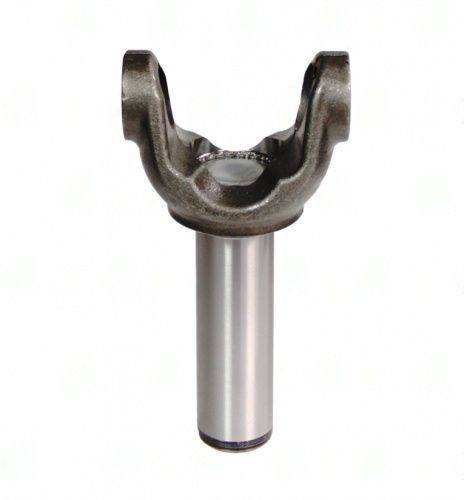

3503-270 – Transmission Yokes – 1350 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia
$72.67
1 in stock
Description
3503-270 1350 series forged yoke with induction-hardened hub, 26/27-spline x 1.176″ diameter, 6.900″ C/U-joint to end, 0.385″ counterbore.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3503-270 |
| Series | 1350 |
| Construction | Forged, induction heat-treated hub |
| Splines | 26/27 x 1.176" |
| C/U-joint to End | 6.900" |
| Hub Diameter | 1.500" |
| Counterbore | 0.385" |
- Identical spec to 3503-271 -- the product notes on both confirm "Forged yoke w/ induction heat treated hub" and identical dimensions. Cross-check the part numbers with the source catalog to confirm if these are the same SKU or different production batches
- Induction-hardened hub extends wear life at the seal seating surface and spline flanks
- 26/27-spline x 1.176" pitch diameter -- confirm against the transmission output shaft; different from the 1.220" pitch diameter in the 27/28-spline family
- 0.385" counterbore -- same as 3503-271; pilots against output retainer OD
- Hub 1.500" -- verify the transmission output seal bore accepts this diameter
The induction heat treatment on the hub creates a hardened surface layer (typically 0.060-0.100" deep) while retaining a tough core. This is particularly effective in applications where the yoke slides under load, causing abrasive wear between the hub OD and the seal lip that accelerates on unhardened surfaces.
Alternative parts:
Additional information
| Center u joint to end | 6.900 |
|---|---|
| Counter bore dia | 385 |
| Hub dia | 1.500 |
| Notes | Forged yoke w/ induction heat treated hub, |
| Partn number | 3503-270 |
| Series | 1350 |
| Splines count dia | 26/27 X 1.176 |
