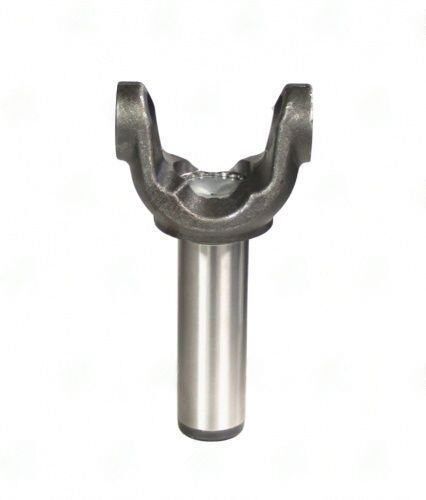

3503-271 – Transmission Yokes – 1350 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia
$71.98
1 in stock
Description
3503-271 1350 series forged induction-hardened hub yoke, 26/27-spline x 1.176″ diameter, 6.900″ C/U-joint to end, 0.385″ counterbore.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3503-271 |
| Series | 1350 |
| Construction | Forged yoke, induction heat-treated hub |
| Splines | 26/27 x 1.176" |
| C/U-joint to End | 6.900" |
| Hub Diameter | 1.500" |
| Counterbore | 0.385" |
- Induction heat treatment of the hub increases surface hardness at the seal interface and spline flanks -- this extends wear life in applications where the yoke slides frequently under load
- Forged body provides better fatigue resistance than cast construction -- appropriate for performance street builds
- 26/27-spline x 1.176" -- a smaller pitch diameter than the 1.220" profile in the 27/28-spline family; confirm spline measurement before ordering
- 0.385" counterbore -- pilots against the output bearing retainer OD; measure the retainer before ordering
- Hub 1.500" -- match to the transmission output seal bore
The combination of forged construction and induction-hardened hub makes 3503-271 a durable upgrade choice for vehicles where the standard steel yoke has repeatedly failed due to hub surface wear or spline fatigue. This is not a chromoly part -- the induction treatment improves surface properties without the full material upgrade of a chromoly yoke.
Alternative parts:
Additional information
| Center u joint to end | 6.900 |
|---|---|
| Counter bore dia | 385 |
| Hub dia | 1.500 |
| Notes | Forged yoke w/ induction heat treated hub, |
| Partn number | 3503-271 |
| Series | 1350 |
| Splines count dia | 26/27 X 1.176 |
