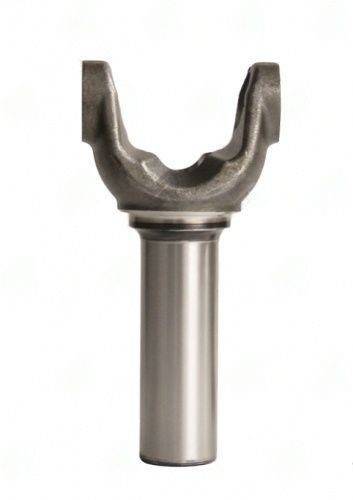

3503-231 – Transmission Yokes – 1350 Series – 23 X 1.200 Splines – 1.575″ Hub Dia
$89.31
1 in stock
Description
3503-231 1350 series Toyota transmission yoke, 23-spline x 1.200″ diameter, 7.106″ centerline to U-joint, 1.575″ hub diameter.
Full Description
3503-231 -- 1350 Series Toyota Transmission Yoke, 23-Spline x 1.200"
Toyota 4WD trucks and SUVs with the 1350 series driveshaft specification use a 23-spline x 1.200" transmission output -- the same spline count and diameter as 2603-231 (KIA) and 1303-23 (Toyota 1351-20 series), but in the higher-torque-capacity 1350 series. Upgrading from a 2351-20 or 1351-20 series yoke to a 1350 series requires changing the entire driveshaft to 1350 spec -- the U-joint cap bore is different.
The 7.106" C/U-joint to end is consistent with the 1303-23 and other Toyota-specific yokes, confirming this is sized for Toyota truck applications. The 1.575" hub OD is the Toyota transmission output seal specification for this platform. No counterbore -- hub and spline engagement provide centering. Common applications include Land Cruiser, 4Runner, Tacoma, and Hilux with manual or automatic transmissions in markets that use the 1350 series standard.
Additional information
| Center u joint to end | 7.106 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.575 |
| Notes | TOYOTA |
| Partn number | 3503-231 |
| Series | 1350 |
| Splines count dia | 23 X 1.200 |
